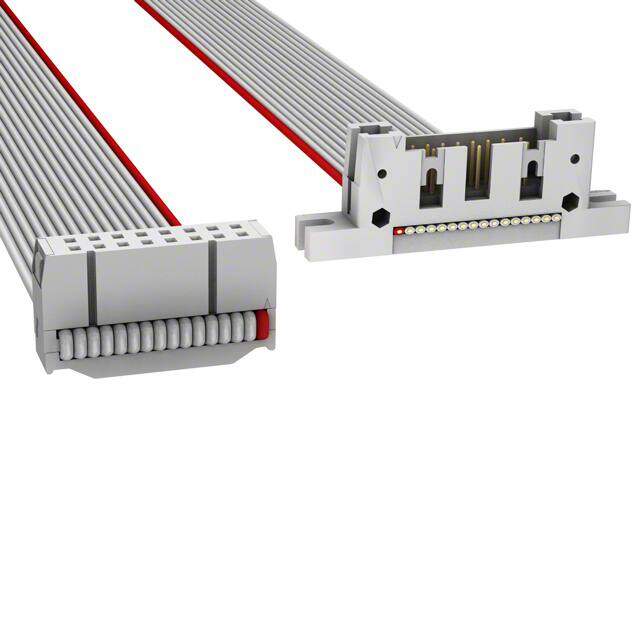

H3BWH-1618G image
Favorite
H3BWH-1618G image
Favorite

H3BWH-1618G

Assmann WSW Components
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CBL - HHSR16H/AE16G/HHPL16H
PDF
/
Inventory: 1588
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Feature Strain Relief (Socket); Flange, Polarizing Key (Plug)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket to Plug
Number of Positions 16
Color Gray, Ribbon
Number of Rows 2
Shielding Unshielded
Contact Finish Gold
Number of Contacts 16
Cable Termination IDC
Pitch - Connector 0.100 2.54mm
Published 2011
Pitch - Cable 0.050 1.27mm

Physical

Mount Cable
Contact Plating Gold

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness 15.0μin 0.38μm
Length 1.50' 457.20mm
