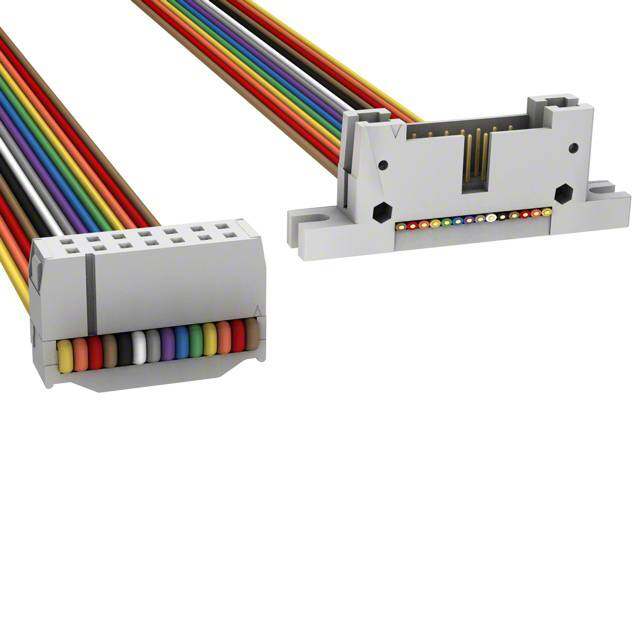

H3BWH-1406M image
Favorite
H3BWH-1406M image
Favorite

H3BWH-1406M

Assmann WSW Components
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CABLE - HSR14H/AE14M/HPL14H
PDF
/
Inventory: 2319
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Cable

Technical

Published 2011
Feature Strain Relief (Socket); Flange, Polarizing Key (Plug)
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket to Plug
Number of Positions 14
Color Multiple, Ribbon
Number of Rows 2
Shielding Unshielded
Contact Finish Gold
Cable Termination IDC
Pitch - Connector 0.100 2.54mm
Pitch - Cable 0.050 1.27mm

Dimensions

Length 0.500' 152.40mm 6.00
Contact Finish Thickness 15.0μin 0.38μm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free

Alternative Model

F9LD2-3M10

F9LD2-3M10

Panduit Corp
