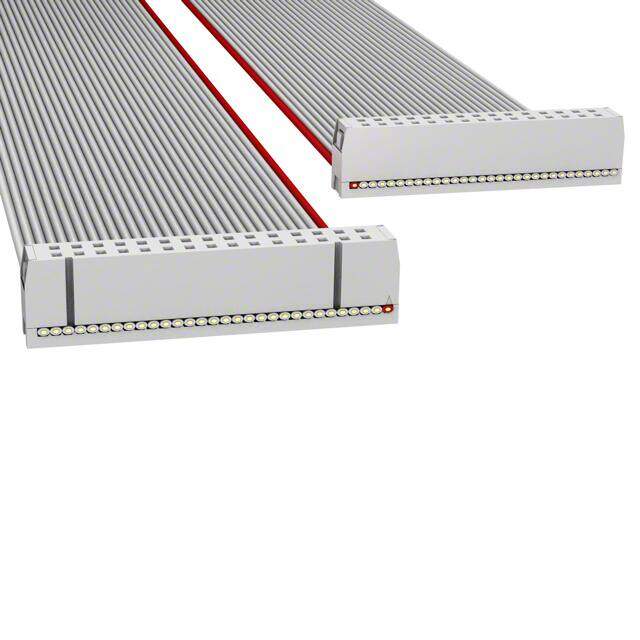

H3AAH-3036G

Assmann WSW Components
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CBL - HHSC30H/AE30G/HHSC30H
PDF
/
Inventory: 9995
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Dimensions

Length 3.00' 914.40mm
Contact Finish Thickness 15.0μin 0.38μm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free

Technical

Pitch - Cable 0.050 1.27mm
Pitch - Connector 0.100 2.54mm
Cable Termination IDC
Number of Contacts 30
Contact Finish Gold
Shielding Unshielded
Number of Rows 2
Color Gray, Ribbon
Number of Positions 30
Connector Type Socket to Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009

Physical

Mount Cable
Contact Plating Gold

Alternative Model

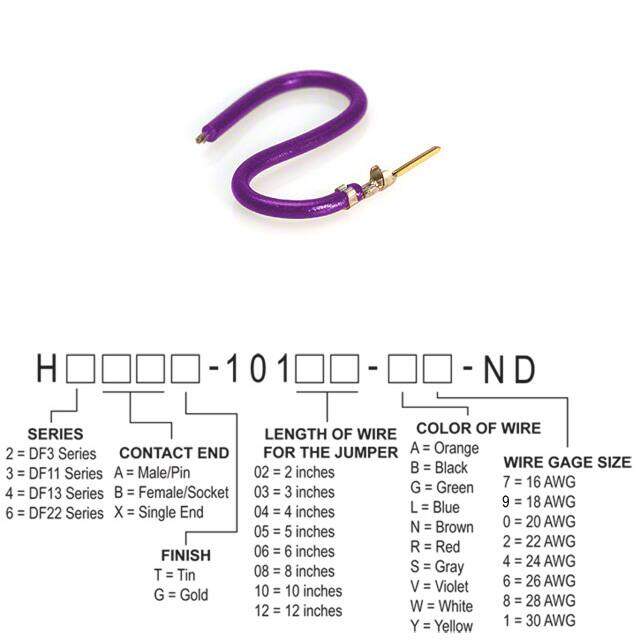

H3AXG-10112-V4
