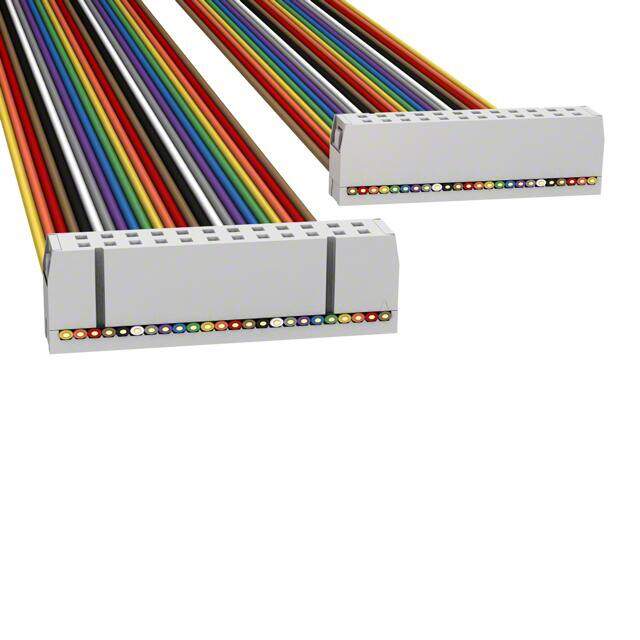

H3AAH-2406M image
Favorite
H3AAH-2406M image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CBL - HHSC24H/AE24M/HHSC24H
PDF
/
Buying Options
Total Price: USD $1.01
Unit Price: USD $1.014872
≥1 USD $1.014872
Inventory: 9412
Minimum: 1
-
+

Technical Details

Physical

Mount Cable

Technical

Published 2010
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket to Socket
Number of Positions 24
Color Multiple, Ribbon
Number of Rows 2
Shielding Unshielded
Contact Finish Gold
Cable Termination IDC
Pitch - Connector 0.100 2.54mm
Pitch - Cable 0.050 1.27mm

Dimensions

Length 0.500' 152.40mm 6.00
Contact Finish Thickness 15.0μin 0.38μm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
