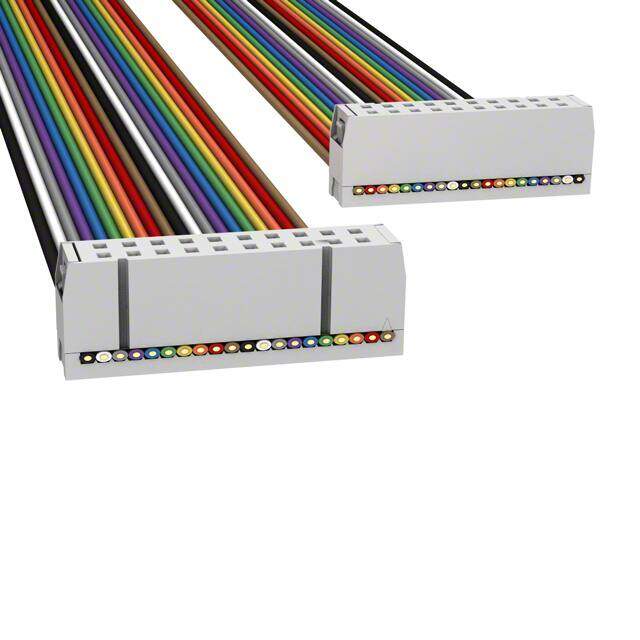

H3AAH-2036M image
Favorite
H3AAH-2036M image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CBL - HHSC20H/AE20M/HHSC20H
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.512031
≥1 USD $0.512031
Inventory: 1743
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness 15.0μin 0.38μm
Length 3.00' 914.40mm

Technical

Pitch - Cable 0.050 1.27mm
Pitch - Connector 0.100 2.54mm
Cable Termination IDC
Number of Contacts 20
Contact Finish Gold
Shielding Unshielded
Number of Rows 2
Color Multiple, Ribbon
Number of Positions 20
Connector Type Socket to Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2011

Physical

Mount Cable
Contact Plating Gold
