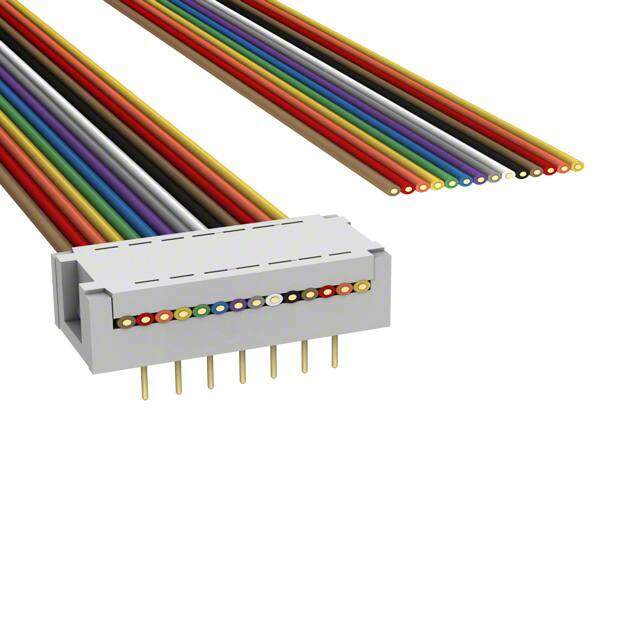

H2PXH-1418M

Assmann WSW Components
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description DIP CABLE - HDP14H/AE14M/X
PDF
/
Inventory: 8166
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Plating Gold

Technical

Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type DIP to Cable
Pitch - Cable 0.050 1.27mm
Pitch - Connector 0.100 2.54mm
Usage Socket (0.3), Board In
Cable Termination IDC
Number of Contacts 14
Contact Finish Gold
Shielding Unshielded
Number of Rows 2
Color Multiple, Ribbon
Number of Positions 14

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Length 1.50' 457.20mm
