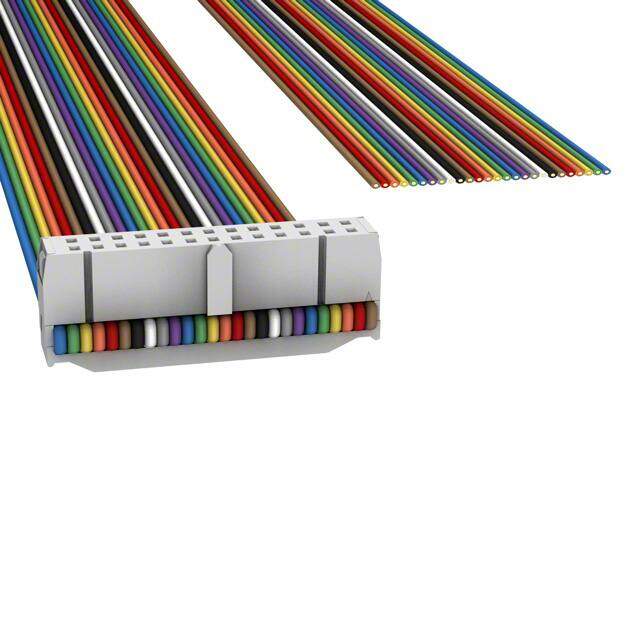

H1DXH-2636M image
Favorite
H1DXH-2636M image
Favorite

H1DXH-2636M

Assmann WSW Components
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CBL - HHKR26H/AE26M/X
PDF
/
Inventory: 5228
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Cable

Technical

Published 2011
Feature Polarizing Key, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket to Cable
Number of Positions 26
Color Multiple, Ribbon
Number of Rows 2
Shielding Unshielded
Contact Finish Gold
Cable Termination IDC
Pitch - Connector 0.100 2.54mm
Pitch - Cable 0.050 1.27mm

Dimensions

Length 3.00' 914.40mm
Contact Finish Thickness 15.0μin 0.38μm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
