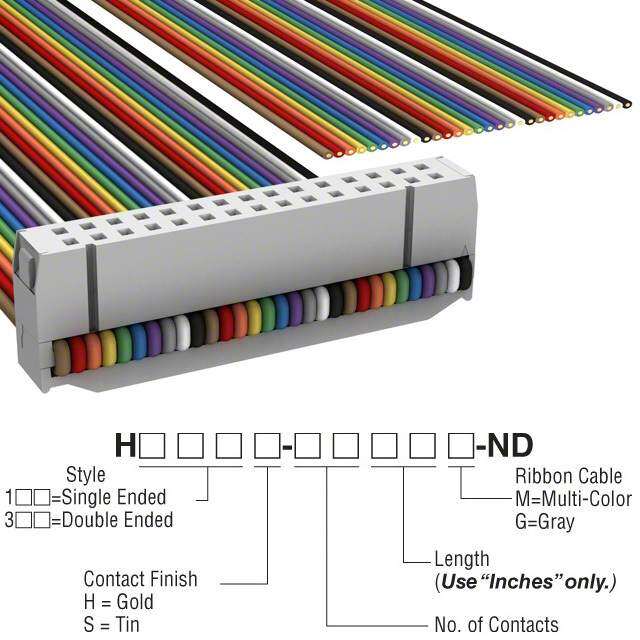

H1BXH-3036M image
Favorite
H1BXH-3036M image
Favorite

H1BXH-3036M

Assmann WSW Components
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CABLE - HSR30H/AE30M/X
PDF
/
Inventory: 6195
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness 15.0μin 0.38μm
Length 3.00' 914.40mm

Technical

Pitch - Cable 0.050 1.27mm
Pitch - Connector 0.100 2.54mm
Cable Termination IDC
Contact Finish Gold
Shielding Unshielded
Number of Rows 2
Color Multiple, Ribbon
Number of Positions 30
Connector Type Socket to Cable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Feature Strain Relief
Published 2011

Physical

Mount Cable

Alternative Model

H3BBT-10104-R6

H3BBT-10104-R6

Hirose Electric Co Ltd
