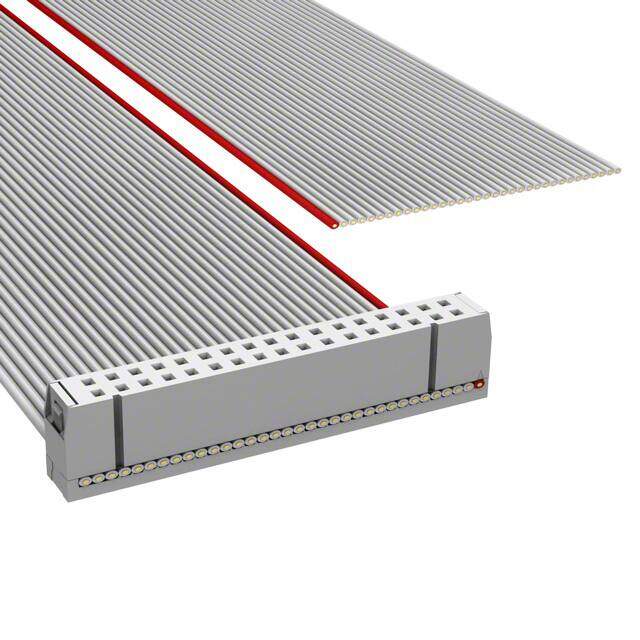

H1AXH-3436G image
Favorite
H1AXH-3436G image
Favorite

H1AXH-3436G

Assmann WSW Components
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CBL - HHSC34H/AE34G/X
PDF
/
Inventory: 7511
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Cable

Technical

Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket to Cable
Number of Positions 34
Color Gray, Ribbon
Number of Rows 2
Shielding Unshielded
Contact Finish Gold
Cable Termination IDC
Pitch - Connector 0.100 2.54mm
Pitch - Cable 0.050 1.27mm

Dimensions

Length 3.00' 914.40mm
Contact Finish Thickness 15.0μin 0.38μm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free

Alternative Model

2-1499688-5

2-1499688-5

TE Connectivity / AMP
