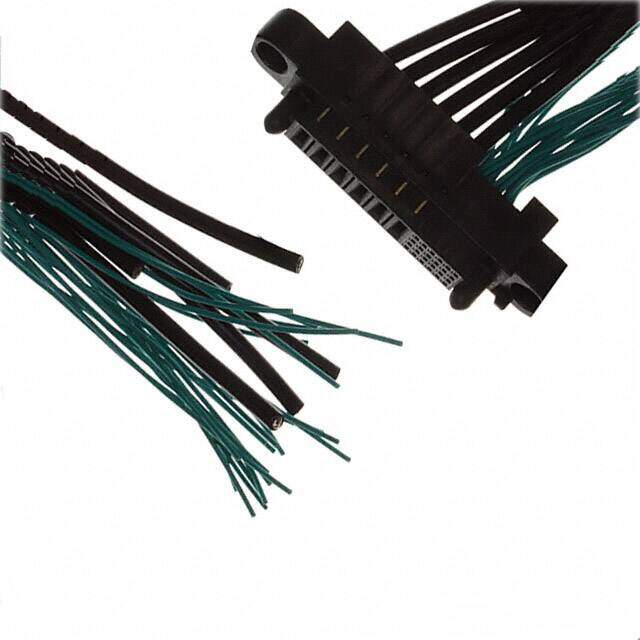

10080591-HAB0023LF

Amphenol ICC (FCI)
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description CONN RCPT 6PWR+24S 10AWG STR 1M
PDF
/
Buying Options
Total Price: USD $56.12
Unit Price: USD $56.1176
≥1 USD $56.1176
≥10 USD $51.49936
≥100 USD $49.518656
≥500 USD $47.867952
≥1000 USD $45.226896
Inventory: 81
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Length 3.28' 1.00m

Technical

Connector Type B Connector
Usage Power Module
Cable Termination Crimp
Wire/Cable Gauge 10 AWG
Cable Length 1m
Wire/Cable Type Power Cord
Body/Shell Style RECEPTACLE
Contact Style HYBRID
Empty Shell NO
UL Flammability Code 94V-0
Operating Temperature (Max) 105°C
Reliability COMMERCIAL
Contact Finish Gold, GXT?
Reference Standard UL
Number of Conductors 6
Current Rating 30A
Shielding Unshielded
Total Number of Contacts 30
Option GENERAL PURPOSE
Mixed Contacts YES
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Female
Number of Rows 1, 4
Color Black, Green
Number of Positions 30 (24 + 6 Power)
Connector Type Socket to Individual Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Flange
Series PwrBlade?
Packaging Bulk

Physical

Mounting Style STRAIGHT
Mounting Option 1 LOCKING
Shell Material POLYETHYLENE
Insulation Material GLASS FILLED THERMOPLASTIC
Mounting Type CABLE AND PANEL
Contact Plating GXT, Gold

Supply Chain

Factory Lead Time 10 Weeks
