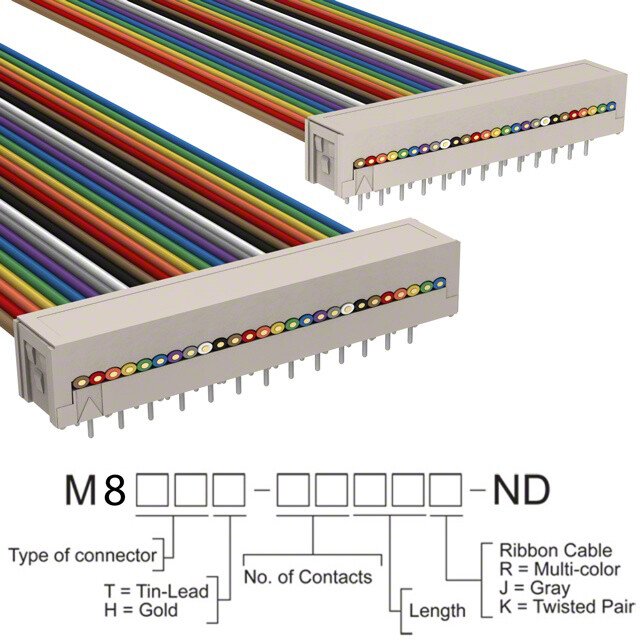

M8MMH-2636R image
Favorite
M8MMH-2636R image
Favorite

M8MMH-2636R

3M
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CABLE - MDM26H/MC26M/MDM26H
PDF
/
Inventory: 9922
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Cable

Technical

Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type PCB to PCB, Reversed
Number of Positions 26
Color Multiple, Ribbon
Number of Rows 2
Shielding Unshielded
Contact Finish Gold
Cable Termination IDC
Usage Board In
Pitch - Connector 0.100 2.54mm
Pitch - Cable 0.050 1.27mm

Dimensions

Length 3.00' 914.40mm
Contact Finish Thickness 15.0μin 0.38μm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
