RoHS
/
Package /
Category Switches / Pushbutton Switches
Description

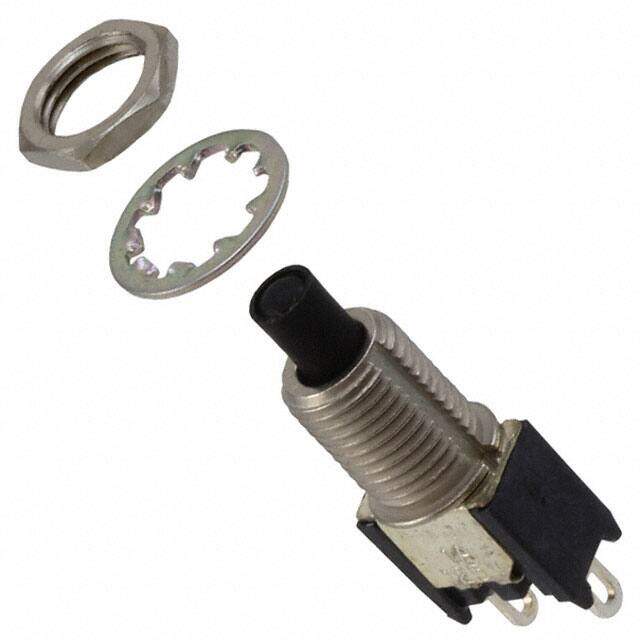

Pushbutton Switches SPST MOM RND PNL LUG TACT PB SWITCH
PDF
/
Buying Options
Total Price: USD $46.34
Unit Price: USD $46.344057
≥1 USD $46.344057
≥200 USD $18.492197
≥500 USD $17.873821
≥1000 USD $17.569228
Inventory: 3866
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Actuator Length 4.06mm
Length - Termination 0.11 inch
Body Height 8.64mm
Technical
Operating Force-Max 3.92 N
Bushing Length 0.31 inch
Solderability HAND
Actuator Travel 0.762 mm
Contact Function OFF-(ON)
Contact Voltage(AC)-Max 125V
Contact (DC) Max Rating R Load 1A@28VDC
Contact Current(AC)-Max 1A
Contact Current Rating 1A
Electrical Life 60,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Contact Voltage(DC)-Max 28V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 1A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Breadth 5.23 mm
Body Length or Diameter 8.13mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Orientation Vertical
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 20V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Part Status Active
Series TP
Published 2004
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material THERMOPLASTIC
Insulation Material THERMOPLASTIC
Mounting Feature PANEL MOUNT-THREADED
Surface Mount NO
Mounting Type Panel Mount, Rear
Contact Plating Silver
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 28 Weeks
