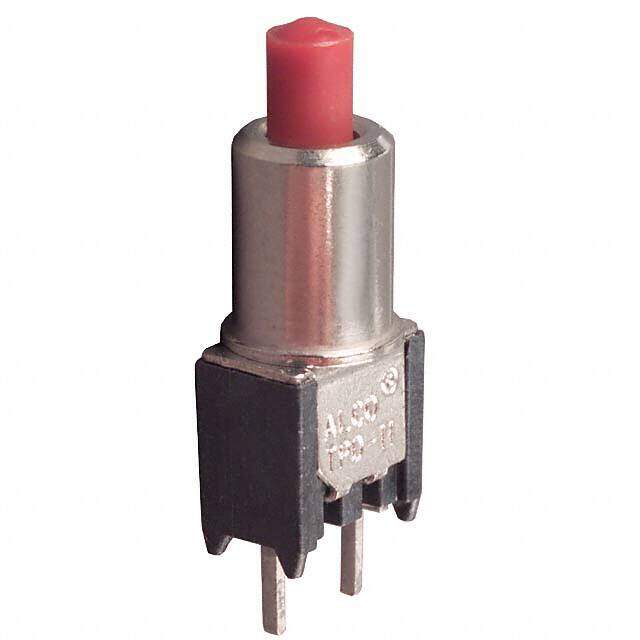

TPD11CGPC2 image
Favorite
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Inventory: 3251
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 21 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)

Physical

Contact Plating Gold
Mounting Type Through Hole
Surface Mount NO

Technical

Operating Temperature -30°C~65°C
Packaging Bulk
Published 2004
Series TP
JESD-609 Code e0
Part Status Active
ECCN Code EAR99
Type Standard
Terminal Finish Tin/Lead (Sn/Pb)
HTS Code 8536.50.90.33
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Reach Compliance Code unknown
Termination Style PC Pin
Voltage - Rated AC 20V
Body Length or Diameter 8.13mm
Body Breadth 5.23 mm
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Color - Actuator/Cap Red
Contact Current(DC)-Max 0.02A
Sealing EPOXY TERMINAL SEALED
Contact Voltage(DC)-Max 20V
Electrical Life 100,000 Cycles
Contact Current(AC)-Max 0.02A
Contact Voltage(AC)-Max 20V
Operating Force-Max 3.92 N

Dimensions

Body Height 8.64mm
Actuator Length 4.01mm

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
