TPCF13C0
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description

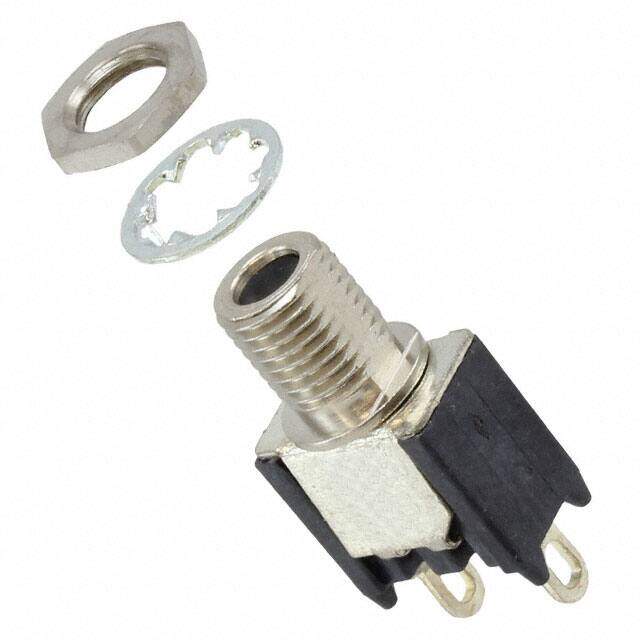

Pushbutton Switches SPST MOM W/PLNGR BLK PUSHBUTTON SWITCH
PDF
/
Buying Options
Total Price: USD $30.8
Unit Price: USD $30.801947
≥1 USD $30.801947
≥200 USD $12.290057
≥500 USD $11.880432
≥1000 USD $11.676933
Inventory: 7564
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Plating Silver
Mounting Type Panel Mount, Rear
Surface Mount NO
Mounting Feature PANEL MOUNT-THREADED
Insulation Material THERMOPLASTIC
Actuator Material THERMOPLASTIC
Technical
Operating Temperature -30°C~65°C
Packaging Bulk
Published 2004
Series TP
JESD-609 Code e0
Pbfree Code no
Part Status Active
ECCN Code EAR99
Type Standard
Terminal Finish Tin/Lead (Sn/Pb)
HTS Code 8536.50.90.31
Voltage - Rated DC 20V
Current Rating (Amps) 1A AC/DC
Orientation Vertical
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 8.1mm
Body Breadth 5.3 mm
Actuator Type Round, Plunger, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 4.83mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 1A
Sealing EPOXY TERMINAL SEALED
Contact Voltage(DC)-Max 20V
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 60,000 Cycles
Contact Current(AC)-Max 1A
Contact Voltage(AC)-Max 125V
Contact Function OFF-(ON)
Actuator Travel 0.762 mm
Solderability HAND
Bushing Length 0.31 inch
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Operating Force-Max 3.92 N
Dimensions
Body Height 8.6mm
Length - Termination 0.11 inch
Actuator Length 0.16 inch
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
