Description

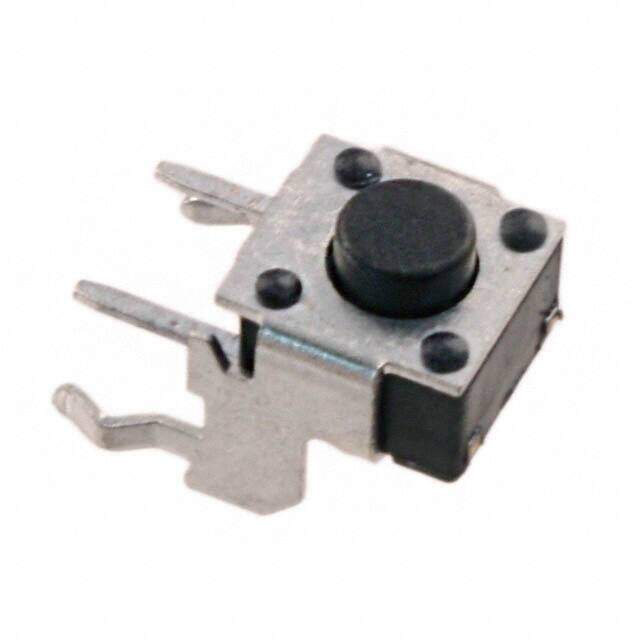

Switch Push Button SPDT Round Plunger 1A 125VAC 28VDC Momentary Contact Wire Lug Panel Mount/Through Hole Loose Piece
PDF
/
Inventory: 4425
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Polyester
Actuator Material Polyamide
Technical
Operating Temperature -30°C~65°C
Packaging Bulk
Published 2004
Series TP
Part Status Active
Termination Lug
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.33
Voltage - Rated DC 20V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 8.13mm
Body Breadth 5.23 mm
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 4.83mm Dia
Contact Resistance 20mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 1A
Sealing EPOXY TERMINAL SEALED
ELV Non-Compliant
Max Voltage Rating (AC) 125V
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 60,000 Cycles
Max Voltage Rating (DC) 28V
Contact Current Rating 1A
Illumination Type Illuminated
Contact Current(AC)-Max 1A
Contact (AC) Max Rating R Load 1A@125VAC
Contact (DC) Max Rating R Load 1A@20VDC
Solderability HAND
Bushing Length 0.22 inch
Operating Force-Max 3.92 N
Dimensions
Body Height 8.64mm
Length - Termination 0.11 inch
Actuator Length 3.48mm
Compliance
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Alternative Model
