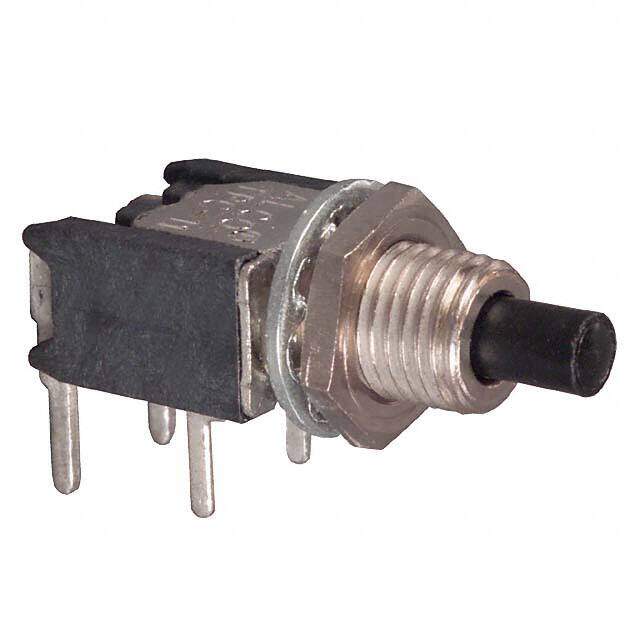

TPC11CGRA0
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $6.57
Unit Price: USD $6.569752
≥1 USD $6.569752
≥200 USD $2.621861
≥500 USD $2.533897
≥1000 USD $2.490571
Inventory: 1142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Plating Gold
Mounting Type Panel Mount, Right Angle, Rear
Surface Mount NO
Insulation Material HIGH TEMP POLYESTER
Actuator Material POLYAMIDE
Technical
Operating Temperature -30°C~65°C
Packaging Bulk
Published 2004
Series TP
JESD-609 Code e0
Pbfree Code no
Part Status Active
ECCN Code EAR99
Type Standard
Terminal Finish Tin/Lead (Sn/Pb)
Additional Feature PANEL MOUNT-THREADED ALSO AVAILABLE
HTS Code 8536.50.90.31
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Termination Style PC Pin
Voltage - Rated AC 20V
Body Length or Diameter 8.64mm
Body Breadth 8.13 mm
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 4.83mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.02A
Sealing EPOXY TERMINAL SEALED
Contact Voltage(DC)-Max 20V
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 100,000 Cycles
Contact Current(AC)-Max 0.02A
Contact Voltage(AC)-Max 20V
PCB Hole Count 5
Contact Function OFF-(ON)
Actuator Travel 0.762 mm
Solderability HAND
Bushing Length 0.22 inch
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Operating Force-Max 2.55 N
Bushing Diameter 0.19 inch
Dimensions
Body Height 5.23mm
Length - Termination 0.13 inch
Actuator Length 3.4798mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
