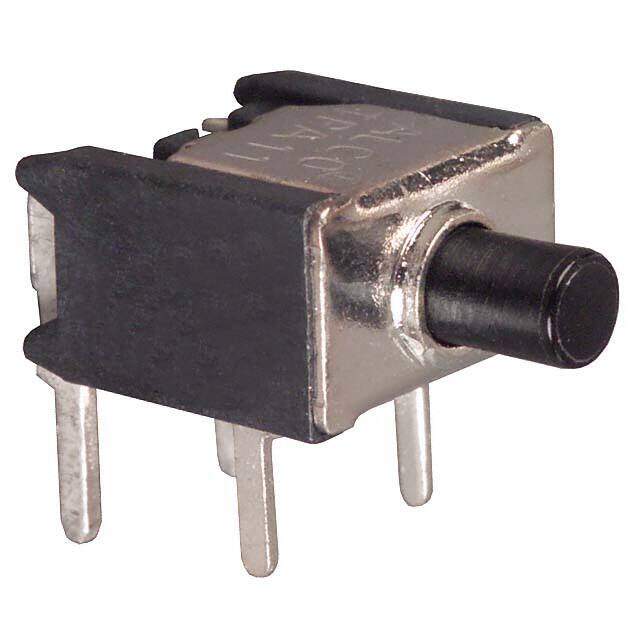

TPA11CGRA0
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $9.94
Unit Price: USD $9.941279
≥1 USD $9.941279
≥200 USD $3.966271
≥500 USD $3.834981
≥1000 USD $3.769336
Inventory: 6334
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Actuator Length 3.85mm
Length - Termination 0.13 inch
Body Height 5.23mm
Technical
Operating Force-Max 2.55 N
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Solderability HAND
Actuator Travel 0.762 mm
Contact Function OFF-(ON)
PCB Hole Count 5
Contact Voltage(AC)-Max 20V
Contact Current(AC)-Max 0.02A
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Contact Voltage(DC)-Max 20V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.02A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Breadth 8.13 mm
Body Length or Diameter 8.13mm
Voltage - Rated AC 20V
Termination Style PC Pin
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Part Status Active
Series TP
Published 2011
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material POLYAMIDE
Insulation Material HIGH TEMP POLYESTER
Surface Mount NO
Mounting Type Through Hole, Right Angle
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 19 Weeks
