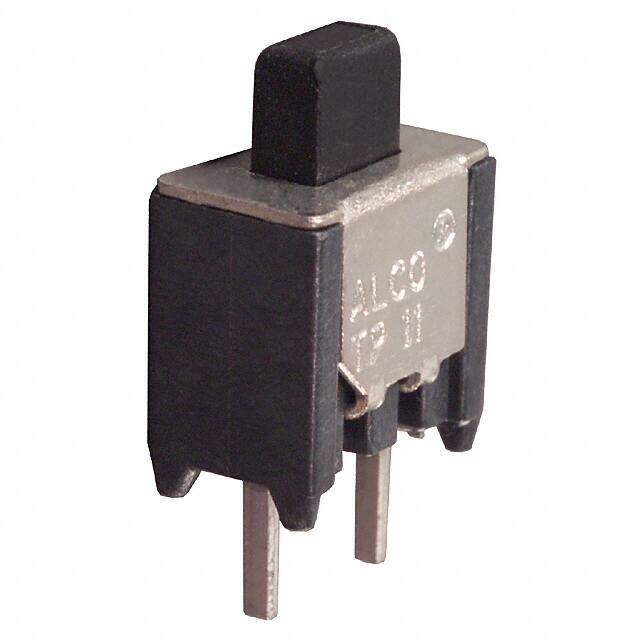

TP11CGPC0
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SP MOM SQ BLK ACT
PDF
/
Buying Options
Total Price: USD $7.82
Unit Price: USD $7.815694
≥1 USD $7.815694
≥200 USD $3.11945
≥500 USD $3.014418
≥1000 USD $2.963215
Inventory: 7130
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Actuator Length 3.1496mm
Length - Termination 0.13 inch
Body Height 8.13mm
Technical
Operating Force-Max 2.5 N
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Solderability HAND
Actuator Travel 0.762 mm
Contact Function OFF-(ON)
PCB Hole Count 2
Contact Voltage(AC)-Max 20V
Contact Current(AC)-Max 0.02A
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Contact Voltage(DC)-Max 20V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.02A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Rectangular, Plunger
Body Breadth 5.23 mm
Body Length or Diameter 8.13mm
Voltage - Rated AC 20V
Termination Style PC Pin
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
HTS Code 8536.50.90.31
Additional Feature SQUARE BUTTON
Type Standard
ECCN Code EAR99
Part Status Active
Series TP
Published 2000
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material POLYAMIDE
Insulation Material HIGH TEMP POLYESTER
Surface Mount NO
Mounting Type Through Hole
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 18 Weeks
