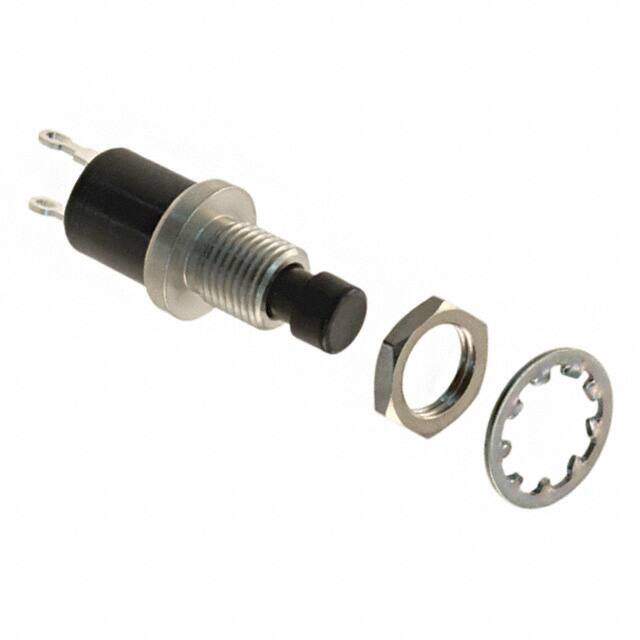

MSPS103C0
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.5A 125V
PDF
/
Inventory: 7621
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mounting Type Panel Mount, Rear
Surface Mount NO
Mounting Feature PANEL MOUNT-THREADED
Insulation Material THERMOPLASTIC
Actuator Material THERMOPLASTIC
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2004
Series MSPS
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Current Rating (Amps) 500mA AC
Current Rating 500mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 10.16mm
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.5A
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 10,000 Cycles
Contact Current Rating 500mA
Contact Current(AC)-Max 0.5A
Contact Voltage(AC)-Max 125V
Contact Function OFF-(ON)
Actuator Travel 2.4892 mm
Solderability HAND
Bushing Length 0.245 inch
Washability SOLVENT
Dimensions
Body Height 26.67mm
Length - Termination 0.22 inch
Actuator Length 0.2 inch
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
