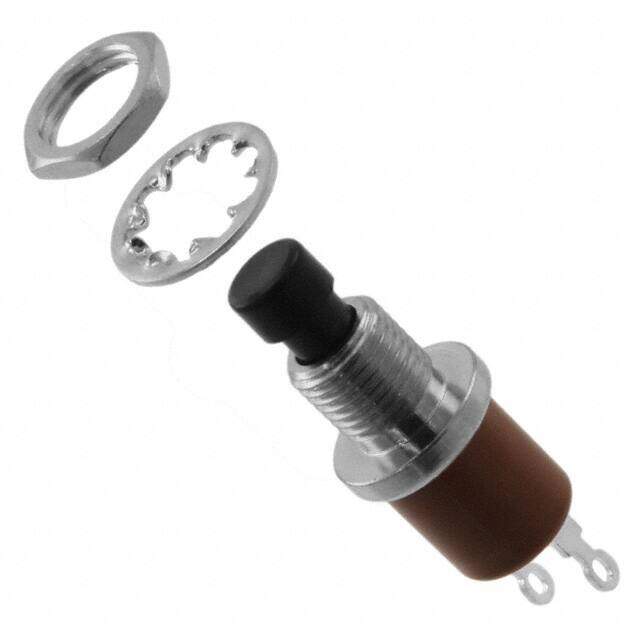

MSPS103B
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 0.5A 125V
PDF
/
Inventory: 3178
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Actuator Length 0.2 inch
Length - Termination 0.22 inch
Body Height 26.67mm
Technical
Washability SOLVENT
Bushing Length 0.245 inch
Solderability HAND
Actuator Travel 2.4892 mm
Contact Function (ON)-OFF
Contact Voltage(AC)-Max 125V
Contact Current(AC)-Max 0.5A
Contact Current Rating 500mA
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Contact Current(DC)-Max 0.5A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round, Button
Body Length or Diameter 10.16mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 500mA
Orientation Vertical
Current Rating (Amps) 500mA AC
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series MSPS
Published 2004
Packaging Bulk
Operating Temperature -20°C~80°C
Physical
Actuator Material THERMOPLASTIC
Insulation Material THERMOPLASTIC
Mounting Feature PANEL MOUNT-THREADED
Surface Mount NO
Mounting Type Panel Mount, Rear
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
