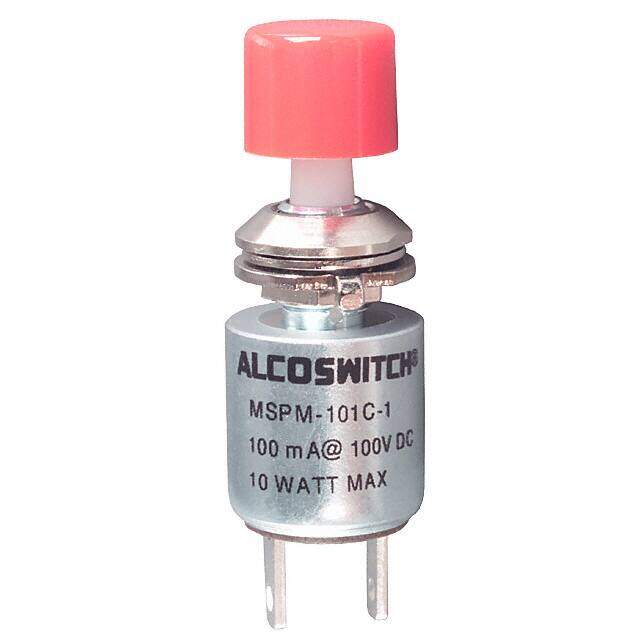

MSPM101C1
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 50V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Steel
Actuator Material Polyamide
Technical
Operating Temperature -10°C~80°C
Packaging Bulk
Published 2004
Series MSPM
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Lug
ECCN Code EAR99
Type Standard
Power Rating 1W
Voltage - Rated DC 50V
Current Rating (Amps) 100mA DC
Orientation Straight
Current Rating 100mA
Termination Style Solder Lug
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 100mOhm
Color - Actuator/Cap Red
ELV Non-Compliant
Electrical Life 50,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 50V
Dimensions
Diameter 13.2mm
Actuator Length 12.19mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
