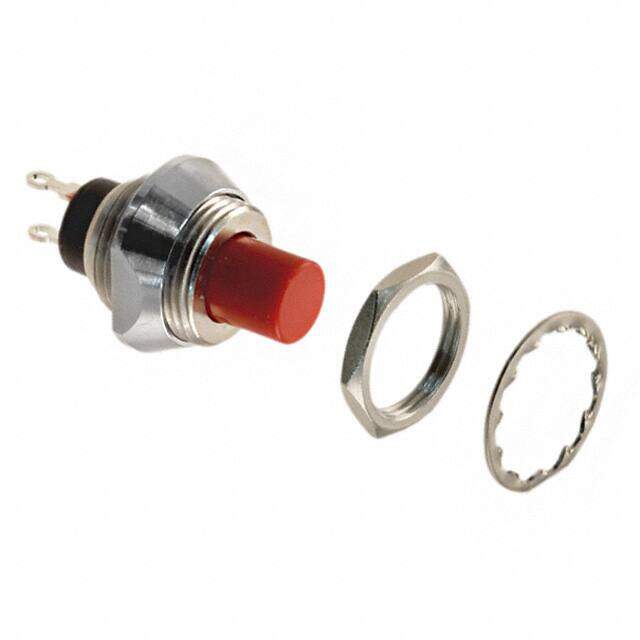

MSPF101C
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.5A 125V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mounting Type Panel Mount, Rear
Surface Mount NO
Mounting Feature PANEL MOUNT-THREADED
Insulation Material THERMOSET 94V-0
Actuator Material THERMOPLASTIC
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2004
Series MSPF
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Current Rating (Amps) 500mA AC
Orientation Vertical
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 11.80mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Red
Contact Current(DC)-Max 0.5A
Sealing EPOXY
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 10,000 Cycles
Contact Current Rating 500mA
Contact Current(AC)-Max 0.5A
Contact Voltage(AC)-Max 125V
Contact Function OFF-(ON)
Actuator Travel 2.54 mm
Body Color BLACK
Bushing Diameter 0.469 inch
Dimensions
Body Height 25.5524mm
Length - Termination 0.2 inch
Actuator Length 0.256 inch
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
