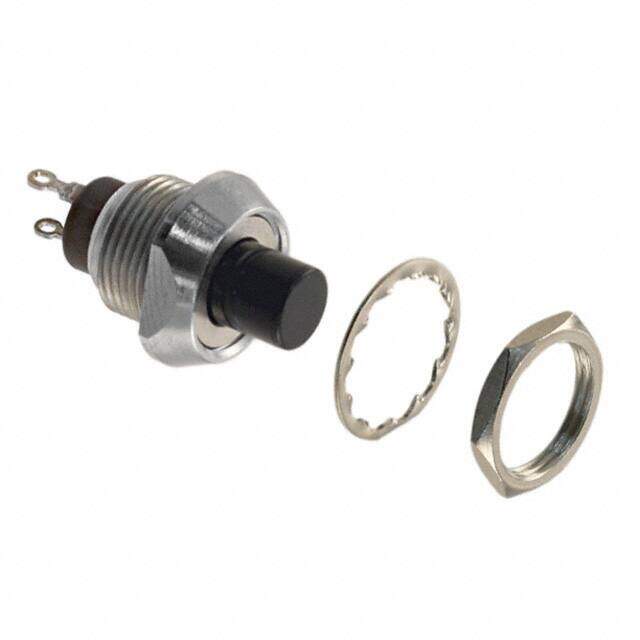

MSPF101B
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 0.5A 125V
PDF
/
Inventory: 3836
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Actuator Length 0.256 inch
Length - Termination 0.2 inch
Body Height 25.5524mm
Technical
Bushing Diameter 0.469 inch
Actuator Travel 2.54 mm
Contact Function N.O.-N.C.
Contact Voltage(AC)-Max 125V
Contact Current(AC)-Max 0.5A
Contact Current Rating 500mA
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Sealing EPOXY
Contact Current(DC)-Max 0.5A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Circular - 11.80mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Orientation Vertical
Current Rating (Amps) 500mA AC
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Series MSPF
Published 2004
Packaging Bulk
Operating Temperature -20°C~80°C
Physical
Actuator Material THERMOPLASTIC
Insulation Material THERMOSET 94V-0
Mounting Feature PANEL MOUNT-THREADED
Surface Mount NO
Mounting Type Panel Mount, Rear
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
