RoHS
/
Package 125
Category Switches / Pushbutton Switches
Description

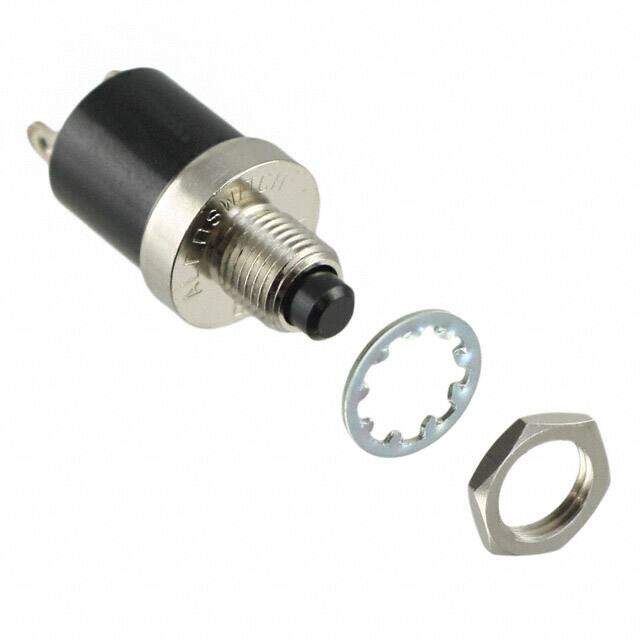

SWITCH PUSH SPST-NC 3A 125V
PDF
/
Buying Options
Total Price: USD $3.83
Unit Price: USD $3.832368
≥1 USD $3.832368
≥10 USD $3.615448
≥100 USD $3.4108
≥500 USD $3.217737
≥1000 USD $3.035593
Inventory: 5313
Minimum: 1
-
+
Technical Details
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Package / Case 125
Housing Material Polymer
Actuator Material Thermoplastic
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2004
Series MSP3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Lug
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Current Rating (Amps) 3A AC
Orientation Straight
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPST-NC
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 100mOhm
Insulation Resistance 1GOhm
Color - Actuator/Cap Black
Contact Current(DC)-Max 3A
ELV Non-Compliant
Max Voltage Rating (AC) 125V
Electrical Life 5,000 Cycles
Throw Configuration SPST
Contact Current Rating 3A
Illumination Type Illuminated
Contact Current(AC)-Max 3A
Dimensions
Diameter 10.4mm
Width 12mm
Actuator Length 2.5mm
Compliance
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
