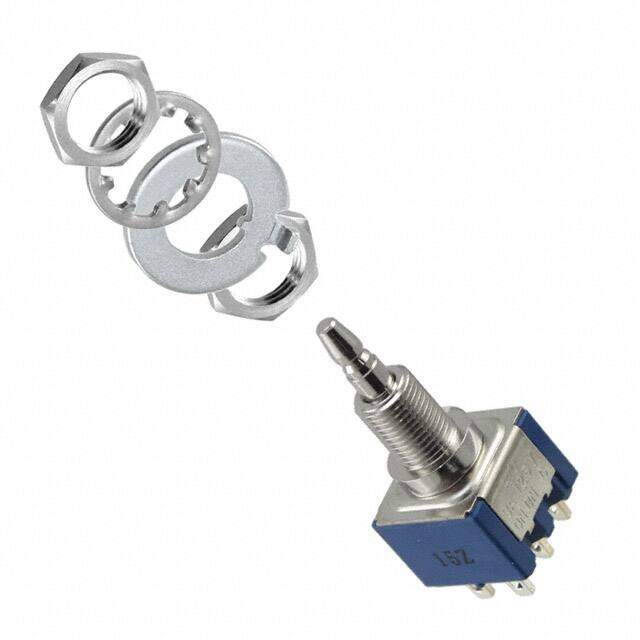

MPS-203N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 3A 125V
PDF
/
Inventory: 9490
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Brass
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Insulation Material THERMOSET 94V-0
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2011
Series Blue
Feature Tactile/Audible Feedback
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Lug
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.33
Current Rating (Amps) 3A AC
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 13mm
Body Breadth 10.49 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Contact Current(DC)-Max 3A
Sealing EPOXY TERMINAL SEALED
Contact Voltage(DC)-Max 28V
Max Voltage Rating (AC) 125V
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 25,000 Cycles
Mechanical Life 50000 cycles
Contact Current Rating 3A
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Contact (DC) Max Rating R Load 3A@28VDC
PCB Hole Count 8
Contact Function ON-OFF
Actuator Travel 2.54 mm
Solderability HAND
Bushing Length 0.423 inch
Operating Force-Max 7.85 N
Washability SOLVENT
Actuator Finish NICKEL
Dimensions
Body Height 13mm
Actuator Length 8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
