MPS-103F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

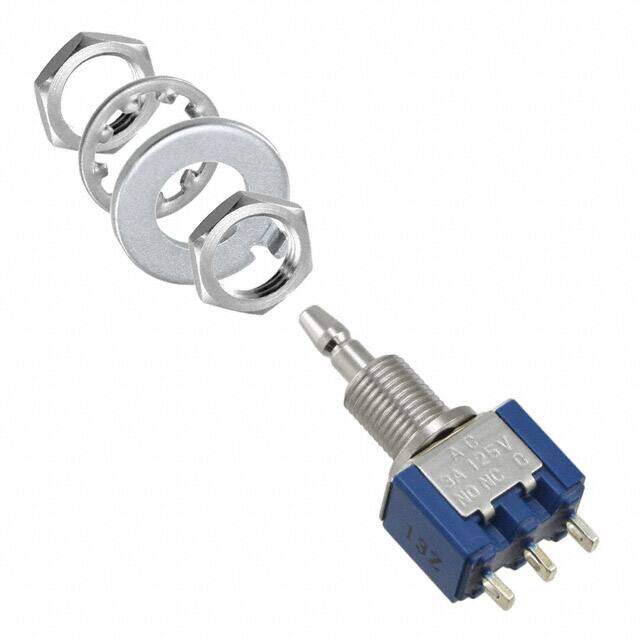

TE CONNECTIVITY / ALCOSWITCH MPS-103F SWITCH, PUSHBUTTON , SPDT, 3A, 125VAC, SOLDER LUG
PDF
/
Buying Options
Total Price: USD $15.39
Unit Price: USD $15.3912
≥1 USD $15.3912
≥10 USD $13.191904
≥100 USD $12.054504
Inventory: 148
Minimum: 1
-
+
Technical Details
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Dimensions
Actuator Length 8.001mm
Technical
Contact Current(AC)-Max 3A
Illumination Type Illuminated
Contact Current Rating 3A
Mechanical Life 50000 cycles
Electrical Life 25,000 Cycles
Max Voltage Rating (AC) 250V
ELV Compliant
Contact Current(DC)-Max 3A
Insulation Resistance 1GOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Current Rating (Amps) 3A AC
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination Lug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Tactile/Audible Feedback
Series Blue
Published 2004
Packaging Bulk
Operating Temperature -20°C~80°C
Physical
Actuator Material Nickel
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel, Screw
Contact Plating Silver
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 21 Weeks
