RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

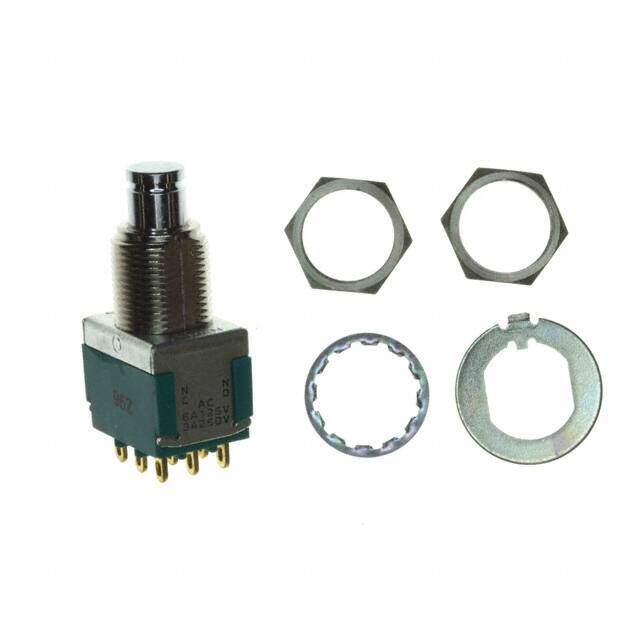

Pushbutton Switches SW PUSHBUTTON
PDF
/
Buying Options
Total Price: USD $22.59
Unit Price: USD $22.589054
≥1 USD $22.589054
≥10 USD $21.310425
≥100 USD $20.104171
≥500 USD $18.966202
≥1000 USD $17.892641
Inventory: 1253
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Copper
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Thermoset
Actuator Material Resin
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2004
Series MPG
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Lug
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Voltage - Rated DC 28V
Current Rating (Amps) 6A AC 4A DC
Orientation Straight
Depth 17.81mm
Current Rating 4A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Breadth 13 mm
Actuator Type Round, Button
Circuit 3PDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 11.80mm Dia
Contact Resistance 10mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 4A
Sealing MOLDED
ELV Compliant
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Dielectric Withstanding Voltage 1500VRMS V
Electrical Life 50,000 Cycles
Contact Current Rating 6A
Illumination Type Illuminated
Contact Current(AC)-Max 6A
Contact (DC) Max Rating R Load 4A@28VDC
Solderability HAND
Operating Force-Max 12.01 N
Washability SOLVENT
Dimensions
Length 17.8mm
Body Height 14.1mm
Actuator Length 8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Contains Lead
