RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

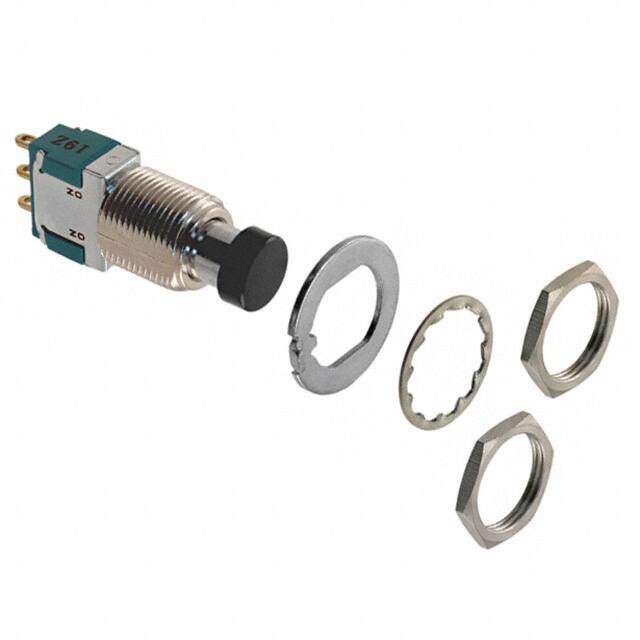

SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $11.88
Unit Price: USD $11.88
≥1 USD $11.88
≥10 USD $10.21504
≥100 USD $9.354224
≥500 USD $7.10248
Inventory: 1467
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Copper
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Thermoset
Actuator Material Resin
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2004
Series MPG
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Lug
ECCN Code EAR99
Type Standard
Number of Positions 2
HTS Code 8536.50.90.33
Voltage - Rated DC 28V
Current Rating (Amps) 6A AC 4A DC
Orientation Straight
Reach Compliance Code not_compliant
Current Rating 6A
Termination Style Solder Lug
Voltage - Rated AC 250V
Body Breadth 8 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 11.80mm Dia
Contact Resistance 10mOhm
Color - Actuator/Cap Black
Contact Current(DC)-Max 4A
Sealing MOLDED
Max Voltage Rating (AC) 250V
Electrical Life 50,000 Cycles
Number of Poles 1
Contact Current Rating 6A
Illumination Type Illuminated
Contact Current(AC)-Max 6A
Contact Function ON-OFF
Solderability HAND
Washability SOLVENT
Dimensions
Actuator Length 8.001mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
