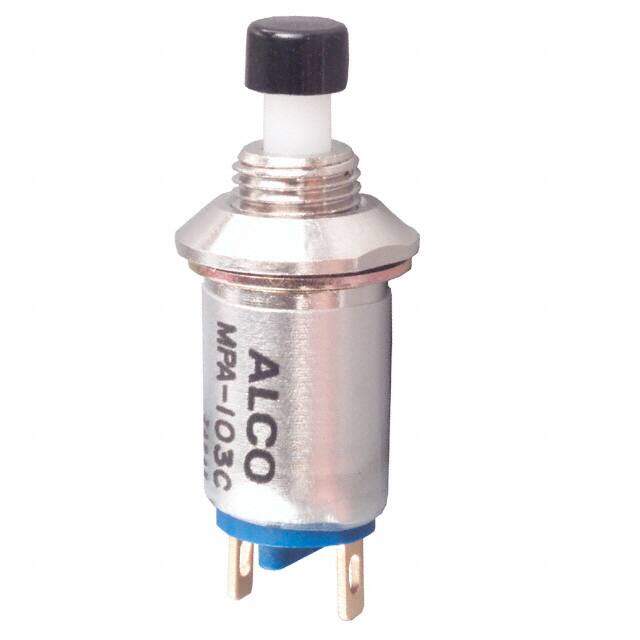

MPA103C04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 3A 125V
PDF
/
Inventory: 3269
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material Acetal
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2007
Series MPA
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Lug
ECCN Code EAR99
Type Standard
Number of Positions 1
Current Rating (Amps) 3A AC
Orientation Straight
Reach Compliance Code unknown
Current Rating 500mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 20mOhm
Color - Actuator/Cap Black
ELV Compliant
Max Voltage Rating (AC) 125V
Electrical Life 10,000 Cycles
Throw Configuration SPST
Contact Current Rating 3A
Contact Current(AC)-Max 3A
Operating Force-Max 2.78 N
Dimensions
Diameter 11.7mm
Actuator Length 5.99mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
