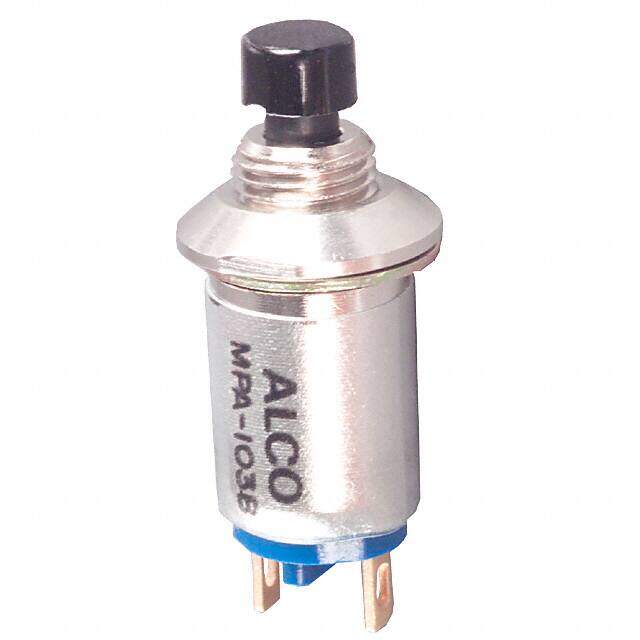

MPA103B04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 3A 125V
PDF
/
Inventory: 9055
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material Acetal
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2007
Series MPA
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Lug
ECCN Code EAR99
Type Standard
Current Rating (Amps) 3A AC
Orientation Straight
Reach Compliance Code unknown
Current Rating 500mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST-NC
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap Black
ELV Compliant
Max Voltage Rating (AC) 125V
Electrical Life 10,000 Cycles
Throw Configuration SPST
Contact Current Rating 3A
Illumination Type Illuminated
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Operating Force-Max 2.78 N
Dimensions
Diameter 11.7mm
Body Height 12.7mm
Actuator Length 5.99mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
