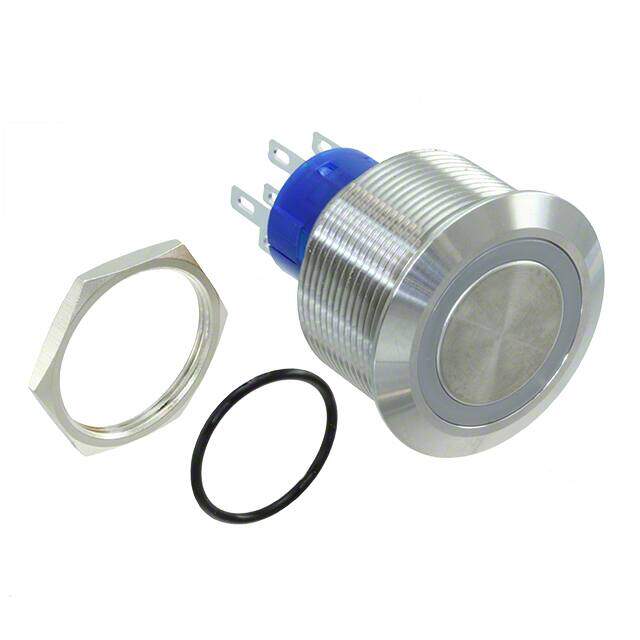

AV2520E112Q04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST-NO 3A 250V
PDF
/
Buying Options
Total Price: USD $16.17
Unit Price: USD $16.1656
≥1 USD $16.1656
≥10 USD $14.68192
≥100 USD $14.021568
≥500 USD $13.279376
≥1000 USD $12.784464
≥3000 USD $11.959658
Inventory: 98
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Copper
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~55°C
Packaging Box
Published 2017
Series AV25
Feature Moving LED Ring
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Anti-Vandal, Illuminated
Current Rating (Amps) 3A AC
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Style Solder Lug
Voltage - Rated AC 250V
Actuator Type Round, Button, Flush
Circuit DPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 25.20mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, White
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current Rating 3A
Compliance
RoHS Status RoHS Compliant
