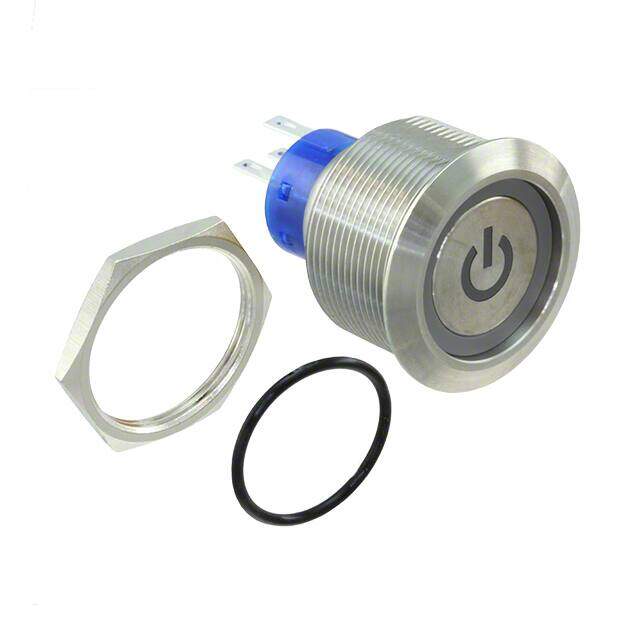

AV2510M112Q04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 3A 250V
PDF
/
Buying Options
Total Price: USD $24.13
Unit Price: USD $24.13152
≥1 USD $24.13152
≥10 USD $22.765587
≥100 USD $21.476968
≥500 USD $20.261288
≥1000 USD $19.114421
Inventory: 5160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~55°C
Packaging Box
Published 2017
Series AV25
Feature Moving LED Ring, Power Symbol
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Anti-Vandal, Illuminated
Current Rating (Amps) 3A AC
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Termination Style Solder Lug
Voltage - Rated AC 250V
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 25.20mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, White
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current Rating 3A
Compliance
RoHS Status RoHS Compliant
