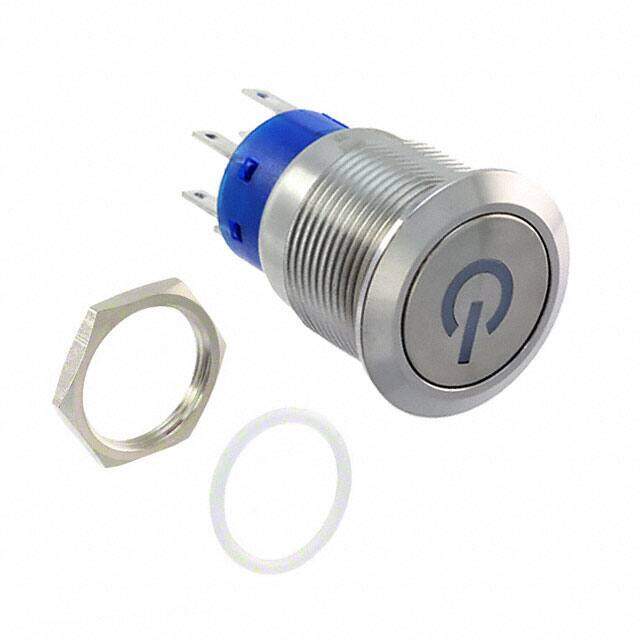

AV1921P112Q04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 3A 250V
PDF
/
Buying Options
Total Price: USD $18.61
Unit Price: USD $18.612
≥1 USD $18.612
≥10 USD $16.9048
≥100 USD $16.145184
≥500 USD $15.29044
≥1000 USD $14.72064
≥3000 USD $13.770918
Inventory: 186
Minimum: 1
-
+
Technical Details
Technical
Current Rating (Amps) 3A AC
Type Anti-Vandal, Illuminated
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Power Symbol
Series AV19
Published 2016
Packaging Tray
Operating Temperature -20°C~55°C
Contact Current Rating 3A
Mechanical Life 500,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, White
Illumination Voltage (Nominal) 12VDC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function Off-On
Circuit DPST
Actuator Type Round, Button, Flush
Voltage - Rated AC 250V
Termination Style Solder Lug
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Physical
Mounting Type Panel Mount, Front
Mount Panel
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
Compliance
RoHS Status RoHS Compliant
