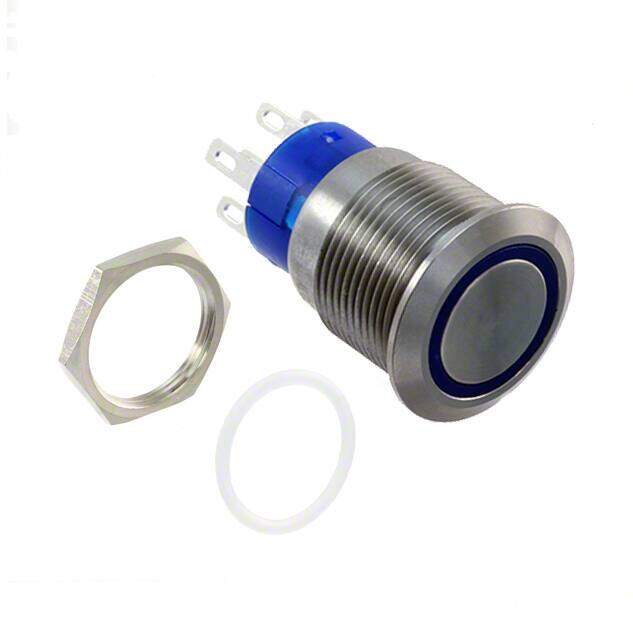

AV1910E712Q04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 3A 250V
PDF
/
Buying Options
Total Price: USD $15.84
Unit Price: USD $15.84
≥1 USD $15.84
≥10 USD $14.20496
≥100 USD $13.580864
≥500 USD $12.87836
≥1000 USD $12.410112
≥3000 USD $11.629614
Inventory: 1092
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~55°C
Packaging Tray
Published 2016
Series AV19
Feature Moving LED Ring
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Anti-Vandal, Illuminated
Current Rating (Amps) 3A AC
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Termination Style Solder Lug
Voltage - Rated AC 250V
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.20mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, Blue
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current Rating 3A
Compliance
RoHS Status RoHS Compliant
