2-1571990-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

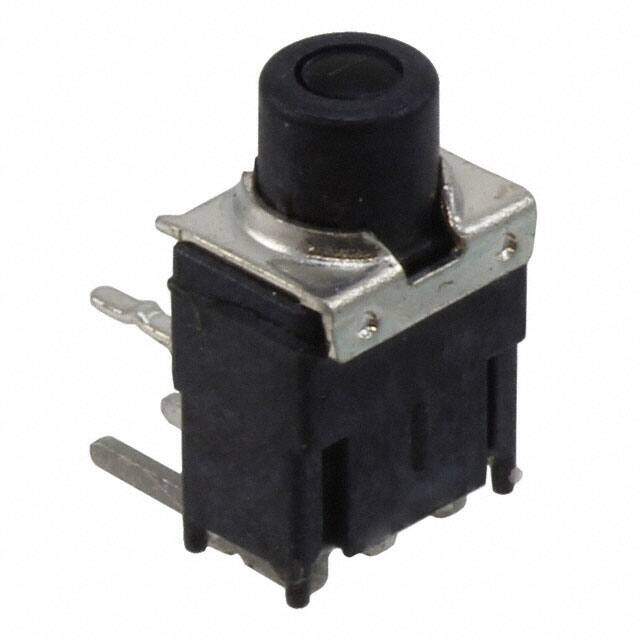

Switch Push Button ON (ON) SPDT Flush Round Button 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Loose Piece
PDF
/
Inventory: 8514
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Contact (DC) Max Rating R Load .02A@20VDC
Contact (AC) Max Rating R Load .02A@20VAC
Contact Current(AC)-Max 0.02A
Max Voltage Rating (DC) 20V
Electrical Life 60,000 Cycles
Max Voltage Rating (AC) 20V
ELV Compliant
Contact Current(DC)-Max 0.02A
Color - Actuator/Cap Black
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger, Flush
Body Length or Diameter 9.19mm
Voltage - Rated AC 20V
Termination Style PC Pin
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Process Sealed
Series TSP
Published 2009
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Thermoplastic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Nickel
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 42 Weeks
