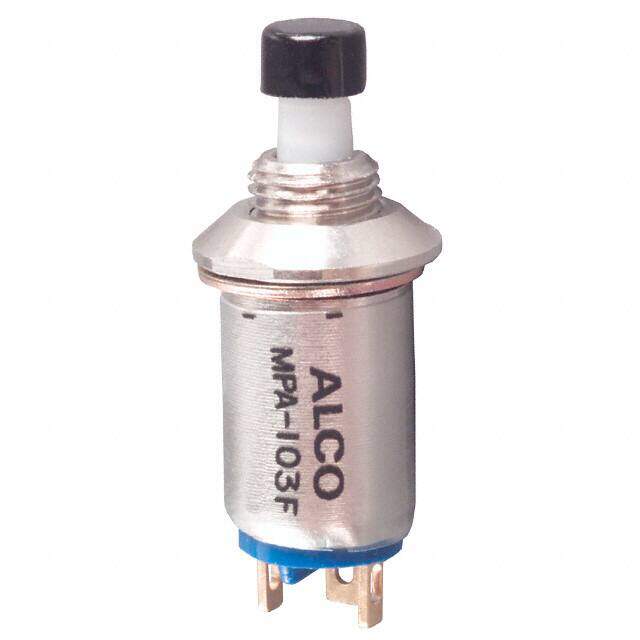

1825404-2
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
Switch Push Button SPDT Round Plunger 3A 125VAC Momentary Contact Solder Lug Panel Mount Loose Piece
PDF
/
Inventory: 2075
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material Acetal
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2016
Series MPA
Feature Tactile Feedback
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.70.00
Current Rating (Amps) 3A AC
Orientation Straight
Reach Compliance Code unknown
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 8.99mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 20mOhm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 125V
Electrical Life 10,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Operating Force-Max 4.45 N
Dimensions
Body Height 13.11mm
Actuator Length 12mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
