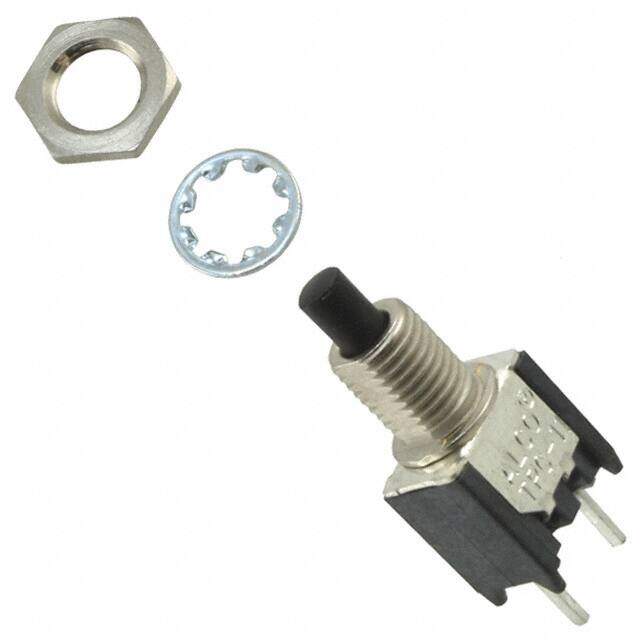

1825098-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches TPC11CGPC004
PDF
/
Buying Options
Total Price: USD $5.46
Unit Price: USD $5.456
≥1 USD $5.456
≥10 USD $4.906
≥100 USD $4.679136
≥500 USD $4.477968
≥1000 USD $4.429128
Inventory: 1597
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material Gold
Mount Panel, Through Hole
Mounting Type Panel Mount, Rear
Housing Material Polyester
Actuator Material Polyamide, Thermoplastic
Technical
Operating Temperature -30°C~65°C
Packaging Bulk
Published 2005
Series TP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Current Rating 400mA
Termination Style PC Pin
Voltage - Rated AC 20V
Body Length or Diameter 8.13mm
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 4.83mm Dia
Contact Resistance 20mOhm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.02A
Sealing EPOXY TERMINAL SEALED
ELV Compliant
Max Voltage Rating (AC) 20V
Electrical Life 100,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 20V
Operating Force 3.92 N
Contact (DC) Max Rating R Load .02A@20VDC
Dimensions
Width 5.23mm
Body Height 8.84mm
Actuator Length 3.4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
