1825097-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

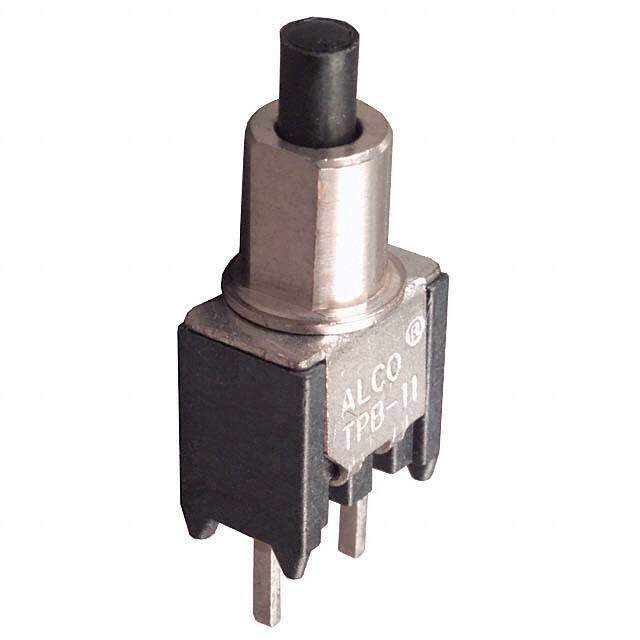

Switch Tactile OFF (ON) SPST Round Plunger PC Pins 20VAC 20VDC 0.4VA 3.92N Thru-Hole Loose Piece
PDF
/
Buying Options
Total Price: USD $4.97
Unit Price: USD $4.972
≥1 USD $4.972
≥10 USD $4.4308
≥100 USD $4.19408
≥500 USD $4.0436
≥1000 USD $3.850088
≥3000 USD $3.678048
Inventory: 5121
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Actuator Length 3.28mm
Body Height 8.84mm
Length 8.13mm
Technical
Bushing Diameter 0.186 inch
Contact Function OFF-(ON)
PCB Hole Count 3
Contact (DC) Max Rating R Load .02A@20VDC
Contact (AC) Max Rating R Load .02A@20VAC
Contact Current(AC)-Max 0.02A
Operating Force 3.92 N
Contact Current Rating 400mA
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1000VRMS V
Max Voltage Rating (AC) 20V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.02A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 20mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Breadth 5.23 mm
Voltage - Rated AC 20V
Termination Style PC Pin
Current Rating 20mA
Depth 5.99mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
HTS Code 8536.50.90.31
Additional Feature ROHS, ELV COMPLIANT
Type Standard
ECCN Code EAR99
Termination PC Pins, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series TP
Published 2005
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
End Contact Material COPPER ALLOY
Terminal Material BRASS
Center Contact Material COPPER ALLOY
Actuator Material Thermoplastic
Housing Material LIQUID CRYSTAL POLYMER
Mounting Type Through Hole
Mount Bushing, Through Hole
Contact Plating Gold
