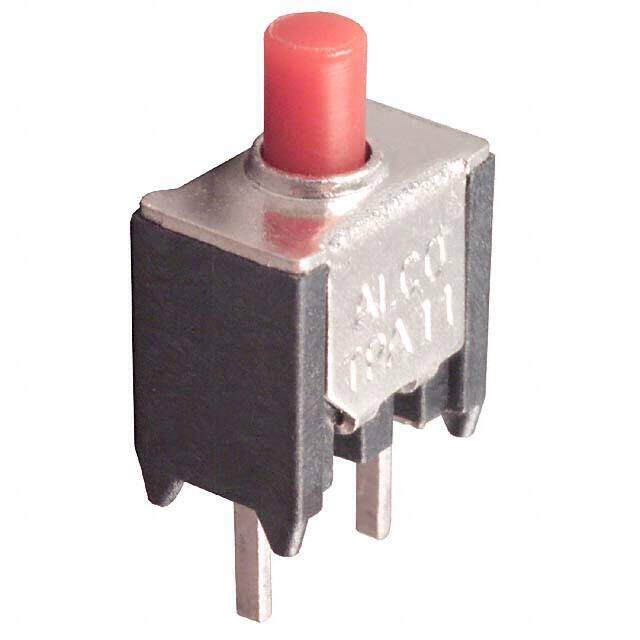

1825096-2 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Switch Tactile OFF (ON) SPST Round Plunger PC Pins 20VAC 20VDC 0.4VA 3.92N Thru-Hole Loose Piece
PDF
/
Inventory: 8806
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Actuator Length 3.84mm
Body Height 8.33mm

Technical

Contact (DC) Max Rating R Load .02A@20VDC
Contact (AC) Max Rating R Load .02A@20VAC
Contact Current(AC)-Max 0.02A
Operating Force 3.92 N
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 20V
ELV Compliant
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.02A
Color - Actuator/Cap Red
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Breadth 5.23 mm
Body Length or Diameter 8.13mm
Voltage - Rated AC 20V
Termination Style PC Pin
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e4
Series TP
Published 2005
Packaging Bulk
Operating Temperature -30°C~65°C

Physical

Actuator Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold

Supply Chain

Factory Lead Time 14 Weeks
