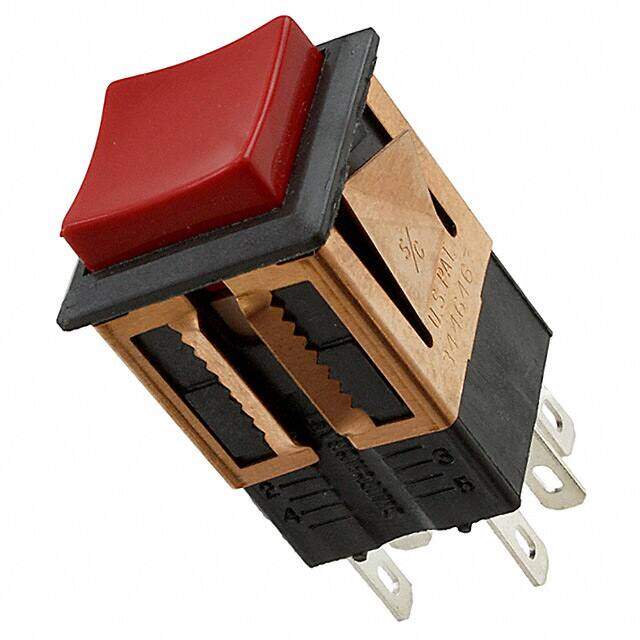

BXR016
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches P/B BOX SWITCH
PDF
/
Buying Options
Total Price: USD $11.33
Unit Price: USD $11.3256
≥1 USD $11.3256
≥10 USD $10.22824
≥100 USD $9.735616
Inventory: 57
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Plastic
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
Technical
Packaging Bulk
Published 1998
Series BXR
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Quick Connect
ECCN Code EAR99
Type Standard
Additional Feature ADJUSTO-CLIPS
HTS Code 8536.50.70.00
Current Rating (Amps) 250mA AC
Current Rating 250mA
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 115V
Body Length or Diameter 15.5mm
Body Breadth 15.5 mm
Actuator Type Square, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Square - 15.75mm2
Color - Actuator/Cap Red
Sealing DUST PROOF
Contact Current Rating 250mA
Illumination Type Illuminated
Contact Current(AC)-Max 0.25A
Contact (AC) Max Rating R Load .25A@120VAC
Contact Voltage(AC)-Max 120V
Contact Function ON-(ON)
Actuator Travel 2.7686 mm
Body Color GRAY
Dimensions
Body Height 22.8mm
Length - Termination 0.296 inch
Actuator Length 0.203 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
