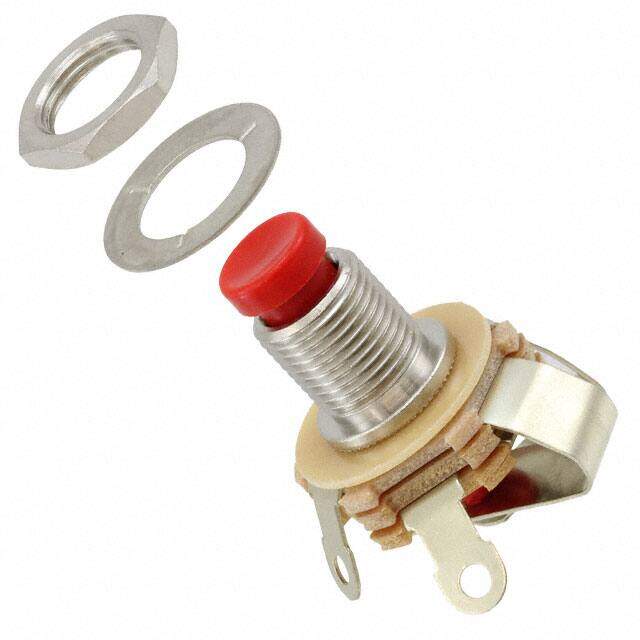

103
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.25A 28V
PDF
/
Buying Options
Total Price: USD $31.28
Unit Price: USD $31.284
≥1 USD $31.284
Inventory: 102
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Body Height 13.5mm
Thickness 5.5mm
Length 9.5mm
Diameter 9.5mm
Technical
Contact Function ON-(ON)
Contact Voltage(AC)-Max 120V
Contact Timing BREAK-BEFORE-MAKE
Contact (AC) Max Rating R Load .25A@120VAC
Contact Current(AC)-Max 0.25A
Breakdown Voltage 1.5kV
Throw Configuration SPDT, SPST
Max Current Rating 250mA
Color - Actuator/Cap Red
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Termination Style Solder Lug
Current Rating 250mA
Current Rating (Amps) 250mA DC
Voltage - Rated DC 28V
HTS Code 8536.50.70.00
Additional Feature LOCKNUTS
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 100
Packaging Bulk
Physical
Actuator Material THERMOPLASTIC
Mounting Type Panel Mount, Rear
Mount Bushing, Panel
Supply Chain
Factory Lead Time 12 Weeks
