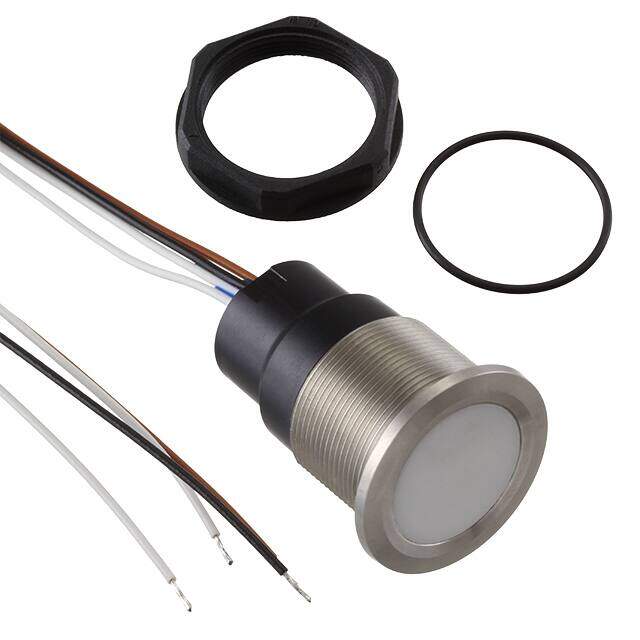

CPS19-NO00A10-SNCCWTWF-AI0MRVAR-W0000-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 100MA 42V
PDF
/
Inventory: 7818
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Panel Mount, Front
Surface Mount NO
Mounting Feature PANEL MOUNT-THREADED
Technical
Operating Temperature -40°C~60°C
Packaging Bulk
Series CPS
Feature Ceramic Actuator, Finger Guide
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Type Capacitive, Illuminated
Voltage - Rated DC 60V
Current Rating (Amps) 100mA AC/DC
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Style Wire Leads
Voltage - Rated AC 42V
Body Length or Diameter 14.5mm
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.10mm Dia
Color - Actuator/Cap Clear (White Filter/Diffuser)
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 5V~28VDC
Illumination Type, Color LED, Magenta/Red
Sealing CORROSION PROOF; IK09; IP67
Contact Voltage(DC)-Max 60V
Dimensions
Body Height 28.7mm
Compliance
RoHS Status ROHS3 Compliant
