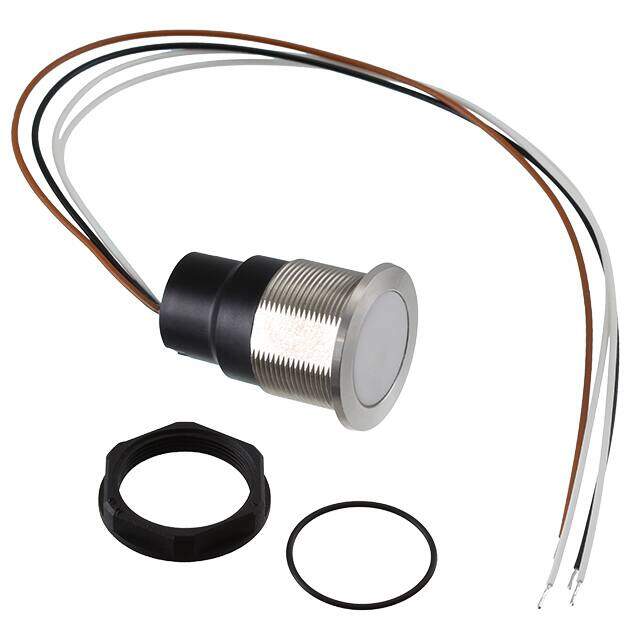

CPS19-NO00A10-SNCCWTNF-AI0CEVAR-W0000-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 100MA 42V
PDF
/
Inventory: 3298
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 28.5mm
Technical
Contact Voltage(DC)-Max 60V
Sealing CORROSION PROOF; IK09; IP67
Illumination Type, Color LED, Cyan/Yellow
Illumination Voltage (Nominal) 5V~28VDC
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Clear (White Filter/Diffuser)
Panel Cutout Dimensions Circular - 19.10mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Flush
Body Length or Diameter 14.5mm
Voltage - Rated AC 42V
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 60V
Type Capacitive, Illuminated
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Feature Ceramic Actuator
Series CPS
Packaging Bulk
Operating Temperature -40°C~60°C
Physical
Mounting Feature PANEL MOUNT-THREADED
Surface Mount NO
Mounting Type Panel Mount, Front
