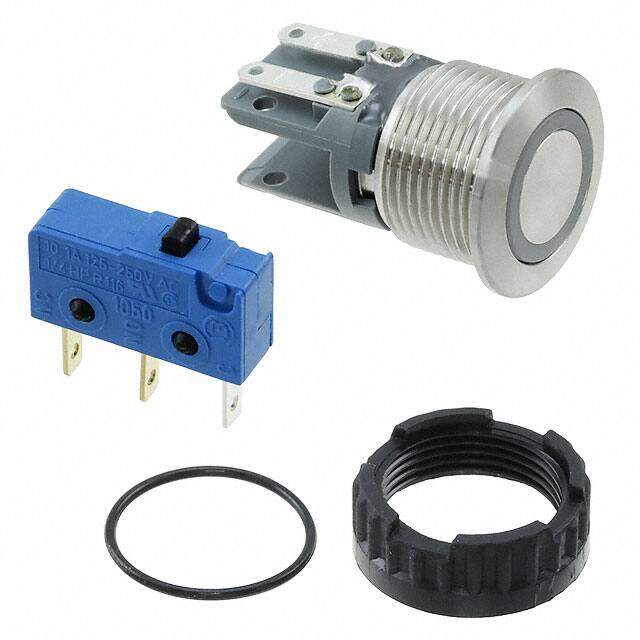

3-102-629
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
MSM MECHANICAL METAL LINE SWITCH
PDF
/
Buying Options
Total Price: USD $39.71
Unit Price: USD $39.7056
≥1 USD $39.7056
Inventory: 53
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Series MSM
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Type Anti-Vandal, Illuminated
Current Rating (Amps) 10A AC
Ingress Protection IP40
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 250V
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.10mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Yellow
Electrical Life 50,000 Cycles
Mechanical Life 1,500,000 Cycles
Contact Current Rating 10A
Compliance
RoHS Status ROHS3 Compliant
