3-101-425
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

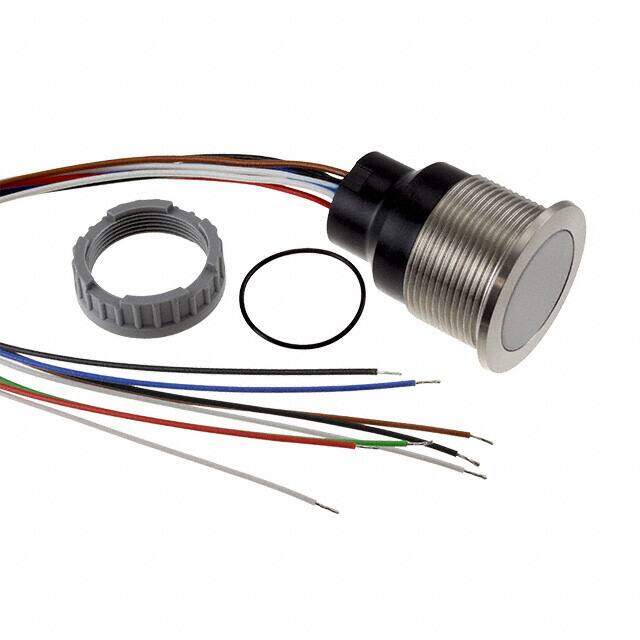

SWITCH PUSHBUTTON SPST 100MA 42V
PDF
/
Buying Options
Total Price: USD $33.34
Unit Price: USD $33.33593
≥1 USD $33.33593
≥10 USD $31.44899
≥100 USD $29.668859
≥500 USD $27.989487
≥1000 USD $26.40518
Inventory: 4822
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Current Rating 100mA
Illumination Type, Color LED, Red/Green/Blue
Illumination Voltage (Nominal) 5V~28VDC
Color - Actuator/Cap Clear (White Filter/Diffuser)
Panel Cutout Dimensions Circular - 22.10mm Dia
Switch Function Off-On
Circuit SPST
Actuator Type Round, Button, Flush
Voltage - Rated AC 42V
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 60V
Number of Positions 2
Type Capacitive, Illuminated
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Feature Ceramic Actuator
Series CPS
Packaging Bulk
Operating Temperature -40°C~60°C
Physical
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 9 Weeks
