3-101-030
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

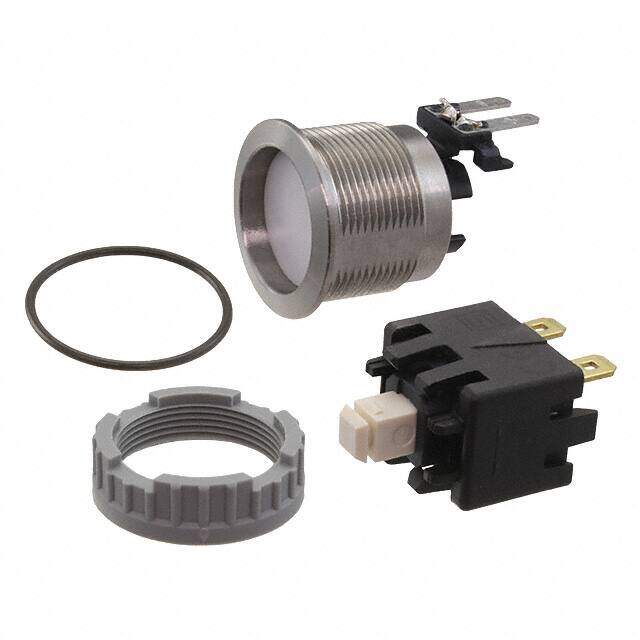

SWITCH PUSHBUTTON SPST 16A 250V
PDF
/
Buying Options
Total Price: USD $54.73
Unit Price: USD $54.7272
≥1 USD $54.7272
≥10 USD $42.974096
≥100 USD $38.109368
Inventory: 105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~85°C
Packaging Bulk
Published 2016
Series MSM LA CS
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Type Anti-Vandal, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 16A AC/DC
Ingress Protection IP64 - Dust Tight, Water Resistant
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 250V
Actuator Type Round, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 22.10mm Dia
Color - Actuator/Cap Clear (White Filter/Diffuser)
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, White
Electrical Life 20,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current Rating 16A
Compliance
RoHS Status ROHS3 Compliant
