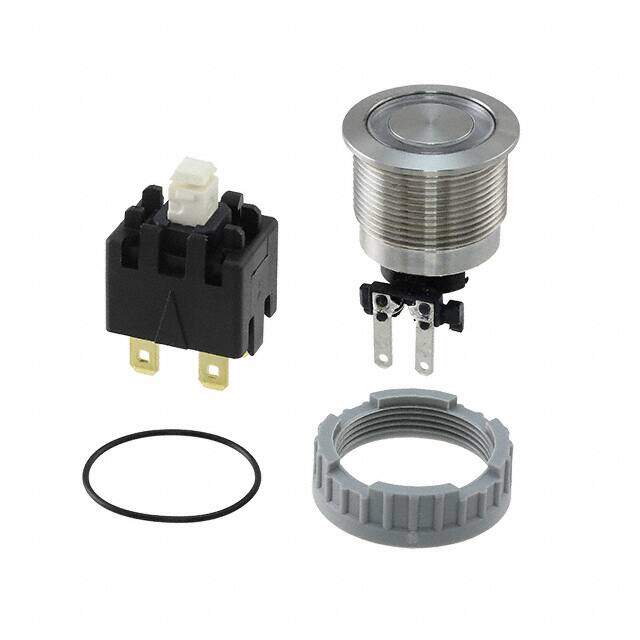

3-101-014
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 16A 250V
PDF
/
Buying Options
Total Price: USD $47.46
Unit Price: USD $47.458656
≥1 USD $47.458656
≥10 USD $44.772312
≥100 USD $42.238035
≥500 USD $39.847202
≥1000 USD $37.591709
Inventory: 9430
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Current Rating 16A
Mechanical Life 100,000 Cycles
Electrical Life 20,000 Cycles
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 24VDC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 22.10mm Dia
Switch Function Off-On
Circuit SPST
Actuator Type Round, Button
Voltage - Rated AC 250V
Termination Style Quick Connect - 0.187 (4.7mm)
Ingress Protection IP64 - Dust Tight, Water Resistant
Current Rating (Amps) 16A AC/DC
Voltage - Rated DC 30V
Type Anti-Vandal, Illuminated
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Series MSM LA
Published 2016
Packaging Bulk
Operating Temperature -20°C~85°C
Physical
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 9 Weeks
