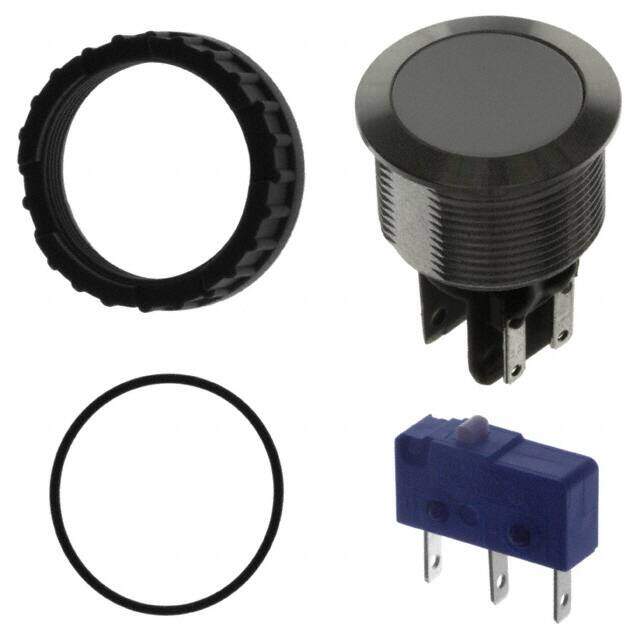

1241.8413
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 100MA 30V
PDF
/
Buying Options
Total Price: USD $39.09
Unit Price: USD $39.0896
≥1 USD $39.0896
Inventory: 49
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Series MSM CS
Feature Ceramic Actuator
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Type Anti-Vandal, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Ingress Protection IP40
Termination Style Quick Connect - 0.110 (2.8mm)
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 19.10mm Dia
Color - Actuator/Cap Clear (White Filter/Diffuser)
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Green
Electrical Life 200,000 Cycles
Mechanical Life 1,500,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
