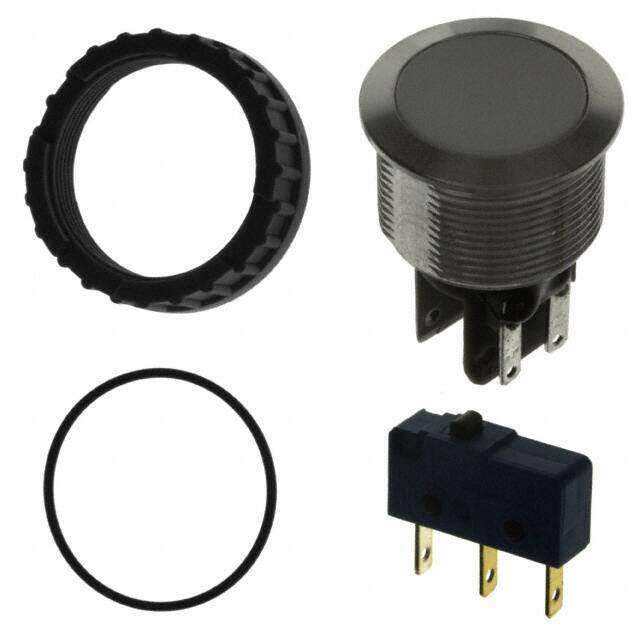

1241.7036.1131000
RoHS
RoHS compliant
RoHS compliantPackage Ceramic
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 10A 250V
PDF
/
Inventory: 2006
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Package / Case Ceramic
Weight 31.751466g
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Series MSM CS
Feature Ceramic Actuator
Part Status Obsolete
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Quick Connect
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Color Red
Voltage - Rated 250V
HTS Code 8536.50.70.00
Current Rating (Amps) 10A AC
Packing Method BOX
Ingress Protection IP40
Current Rating 10A
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 250V
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 22.10mm Dia
Color - Actuator/Cap Clear (White Filter/Diffuser)
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Red
Max Voltage Rating (AC) 250V
Electrical Life 50,000 Cycles
Mechanical Life 1,500,000 Cycles
Contact Current Rating 10A
Illumination Type Illuminated, LED
Operating Force-Max 4.5 N
Contact Voltage Rating (AC) 250V
Dimensions
Height 25.4mm
Length 127mm
Width 76.2mm
Compliance
RoHS Status ROHS3 Compliant
