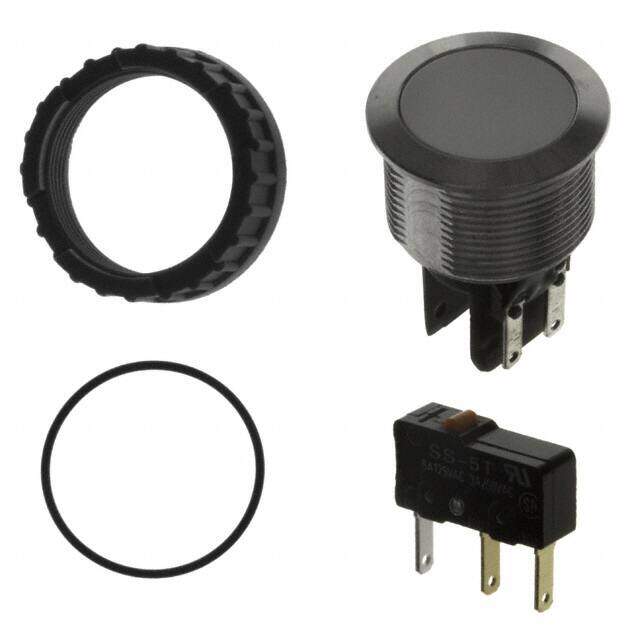

1241.7036.1122000
RoHS
RoHS compliant
RoHS compliantPackage Ceramic
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $40.26
Unit Price: USD $40.26
≥1 USD $40.26
Inventory: 51
Minimum: 1
-
+
Technical Details
Physical
Contact Material Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Package / Case Ceramic
Housing Material Stainless Steel
Weight 45.359237g
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Series MSM CS
Feature Ceramic Actuator
Part Status Obsolete
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Quick Connect
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Color Green
HTS Code 8536.50.70.00
Current Rating (Amps) 5A AC
Packing Method BOX
Ingress Protection IP40
Current Rating 5A
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 22.10mm Dia
Color - Actuator/Cap Clear (White Filter/Diffuser)
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Green
Max Voltage Rating (AC) 250V
Electrical Life 200,000 Cycles
Mechanical Life 1,500,000 Cycles
Contact Current Rating 3A
Operating Force 4.5 N
Illumination Type Illuminated, LED
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@125VAC
Dimensions
Height 25.4mm
Length 177.8mm
Width 152.4mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP40, IP65
